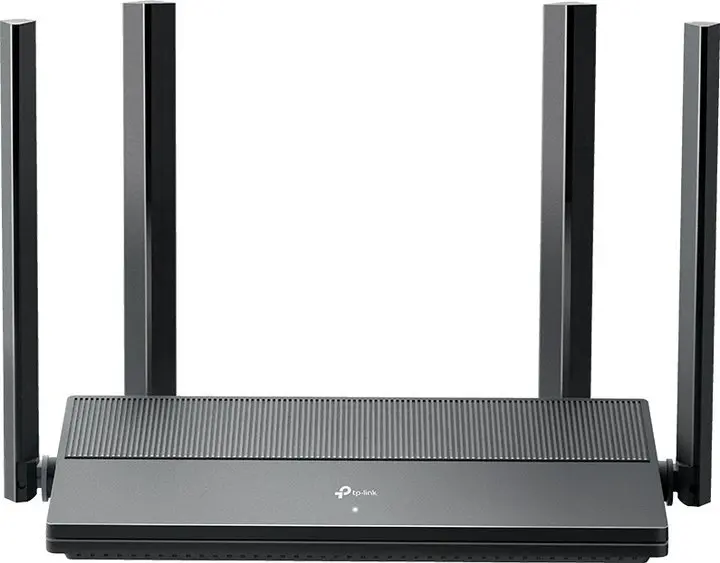

Wireless Router TP-Link EX141 — Dual-band Wi‑Fi 6 tabletop router, Gigabit Ethernet, 4 RJ‑45 LAN ports, 1201+300 Mbps, 4 external antennas, black

Product type: The sub-category of the product.

Tabletop router

Dynamic DNS (DDNS):

Yes

WAN connection type:

RJ-45

Wi-Fi band: The frequency bands the product features.

Dual-band (2.4 GHz / 5 GHz)

USB port: The device features a socket into which a USB cable can be plugged.

No

Ethernet LAN interface type: The characteristics of the Ethernet LAN interface.

Gigabit Ethernet

WLAN data transfer rate (max):

1201 Mbit/s

WLAN data transfer rate (first band):

300 Mbit/s

WLAN data transfer rate (second band):

1201 Mbit/s

Top Wi-Fi standard: Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 6 (802.11ax)

VPN Passthrough:

Yes

Port triggering:

Yes

VPN server:

PPTP, OpenVPN, IPSec

MU-MIMO technology:

Yes

Antenna design:

External

Other features

Browser supported: List of supported browsers for this product.

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers or higher

Parental control:

Yes

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.

33.3 mm

Depth: The distance from the front to the back of something.

94 mm

Width: The measurement or extent of something from side to side.

182.7 mm

Operational conditions

Storage relative humidity (H-H):

5 - 90

Operating relative humidity (H-H):

10 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-40 - 60

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Power

Output current:

1 A

Output voltage:

12

Power source type: What the power source is.

DC

Antenna

Antennas quantity:

4

Design

Product colour: The colour e.g. red, blue, green, black, white.

Black

Features

Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Yes

Mac operating systems supported: Mac operating systems e.g. OS X can be used with the device.

Yes

Windows operating systems supported: Windows vesions wich can be used with the device.

Yes

Packaging content

Quick installation guide:

Yes

Cables included:

LAN (RJ-45)

AC adapter included:

Yes

Security

NAT functionality:

ALG, Virtual Server, Port Trigger, DMZ, uPnP

VPN support:

IPSec, PPTP, L2TP

Network address translation (NAT):

Yes

Firewall:

Yes

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

IPSec, SSID, WPA, WPA2, WPA3

Protocols

Management protocols:

TR-069, TR-098, TR-181, TR-111, and TR-143

DMZ support:

Yes

DHCP client: Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.

Yes

DHCP server: A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.

Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

4

Management features

WPS push button:

Yes

Reset button:

Yes

Quality of Service (QoS) support:

Yes

Wireless LAN features

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11b, 802.11a

Modulation: Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.

1024-QAM

Network

Port forwarding:

Yes

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

1000, 100, 10

Cabling technology: Type of cable technology performance.

10/100/1000Base-T(X)

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

WAN connection

3G/4G USB modem compatibility:

No

SIM card slot: Whether the device features a SIM card slot.

No

Ethernet WAN:

Yes
