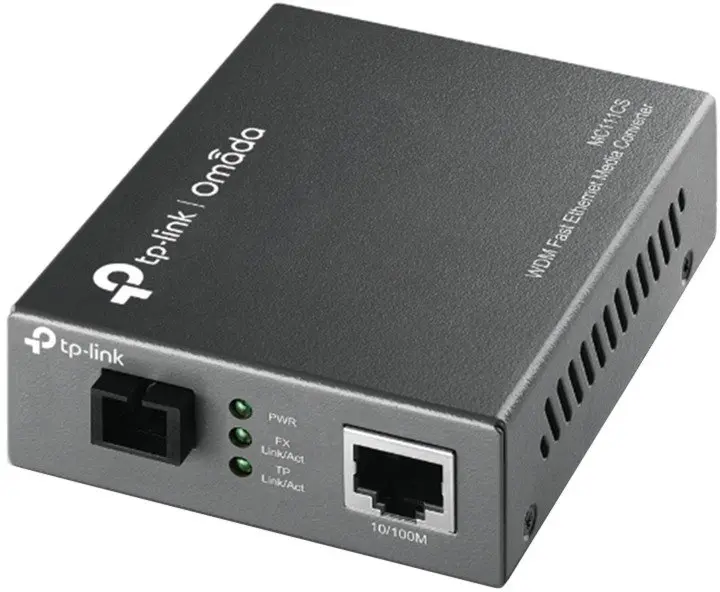

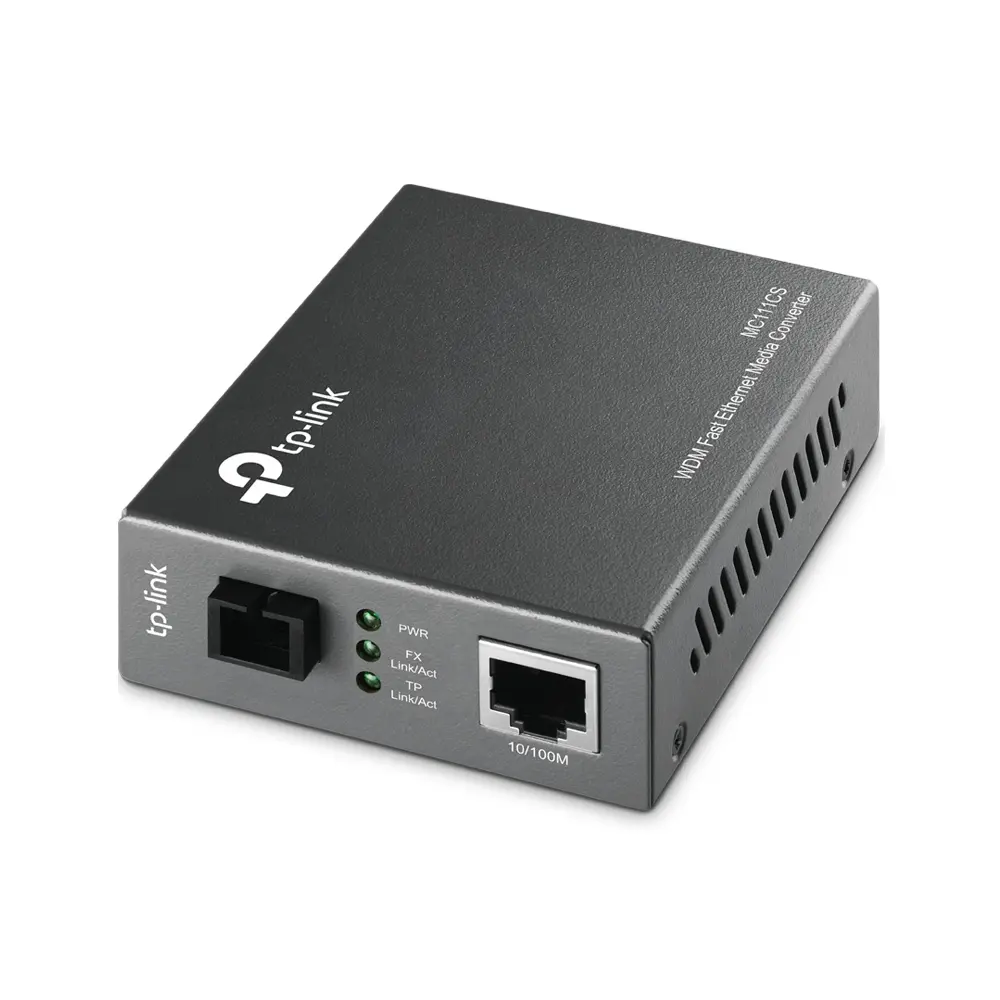

Media Converter TP-Link MC111CS

Name: Media Converter TP-Link MC111CS 10/100Mbps MC111CS
Brand: TP-LINK
SKU: 680766
Price: 30.99 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

Media Converter TP-Link MC111CS 10/100Mbps

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The TP-Link MC111CS is a 10/100Mbps WDM Media Converter with a maximum data transfer rate of 1000 Mbit/s. It supports IEEE 802.3 standards and features an SC fiber optic connector for wired connectivity. With a maximum transfer distance of 20000 m and a wavelength of 1550 nm, it is ideal for long-distance networking. The device has LED indicators for activity and power, consumes a maximum of 1.23 W, and is certified by FCC and CE.

Available at price 30.99 €: 15 pcs.

Total available for order: 25 pcs.

Warranty: 5 Years

SKU: 680766

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

29.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.56 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

29.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The TP-Link MC111CS is a WDM media converter that converts between 100BASE-FX single‑mode fiber and 100BASE‑TX copper Ethernet. Compliant with IEEE 802.3u standards, it uses an SC connector and supports longwave (LX) laser operation at 1550 nm for transmission and 1310 nm for reception, enabling a single‑fiber transmit/receive link and reducing cabling requirements. The unit supports full wire‑speed forwarding for 10/100 Mbps Ethernet and can operate over single‑mode fiber distances up to 20 km. The device includes front panel LEDs for power and link/activity status and can be used as a standalone unit or mounted in TP‑LINK 19" chassis.

Advantages

The MC111CS reduces fiber cabling by using WDM to transmit and receive on one single‑mode fiber, lowering installation cost. It complies with IEEE 802.3u for reliable 10/100Base‑TX and 100Base‑FX interconnection and provides auto MDI/MDI‑X and auto‑negotiation on the TX port for simplified connection to Ethernet devices. Small power consumption and LED indicators allow easy status monitoring.

Suitable for (tasks / use cases)

Extending Ethernet networks over single‑mode fiber links up to 20 km
Connecting remote network segments where fiber cabling cost or pathway is limited
Integrating fiber links with existing 10/100Base‑TX copper equipment
Standalone media conversion or installation within TP‑LINK 19" chassis

Key specifications

Model: TP‑Link MC111CS (MPN: MC111CS, EAN: 6935364030414)
Standards: IEEE 802.3u 10/100Base‑TX, 100Base‑FX
Fiber type: Single‑mode, SC connector
Wavelength: Tx 1550 nm / Rx 1310 nm (WDM)
Maximum transfer distance: up to 20,000 m (20 km)
Ethernet ports: 1 × RJ‑45 (10/100 Mbps) with Auto MDI/MDI‑X, auto‑negotiation
Maximum data transfer rate (device specification): listed up to 1000 Mbit/s
Power consumption: max 1.23 W
Indicators: front panel LEDs for power and link/activity
Certifications: FCC, CE

How to use

Install the MC111CS as a standalone unit or insert it into a compatible TP‑LINK 19" chassis. Connect the RJ‑45 TX port to your switch or router; the TX port supports auto MDI/MDI‑X and auto‑negotiation. Use a single‑mode SC fiber cable to connect the fiber port to the remote converter, ensuring the remote device is configured with opposite wavelengths (it should transmit at 1310 nm and receive at 1550 nm). Power the unit and verify link/activity LEDs to confirm successful connection.

Usage recommendations

Use single‑mode SC fiber with proper termination and follow standard fiber installation practices. Verify wavelength pairing with the remote media converter (MC111CS transmits at 1550 nm and expects the remote end to transmit at 1310 nm). For distances near 20 km confirm link budget and consult TP‑LINK documentation for chassis power options if integrating multiple modules.

Specifications

Maximum data transfer rate:: 1000 Mbit/s
Ethernet LAN (RJ-45) ports:: 1
Fiber ports quantity:: 1
Maximum transfer distance:: 20000 m
Ethernet interface type:: Gigabit Ethernet
Ethernet LAN data rates:: 1000
Fiber optic connector:: SC
Product colour:: Black

All features

Network

Ethernet interface type:: Gigabit Ethernet
Maximum data transfer rate:: 1000 Mbit/s
Ethernet LAN data rates:: 1000
Networking standards:: IEEE 802.3x, IEEE 802.3u, IEEE 802.3
Auto MDI/MDI-X:: Yes
Fiber ethernet cabling technology:: 100BASE-FX
Cable types supported:: Cat5e, Cat5, Cat4, Cat3

Ports & interfaces

Ethernet LAN (RJ-45) ports:: 1
Fiber ports quantity:: 1
Fiber optic connector:: SC
Connectivity technology:: Wired

Performance

Maximum transfer distance:: 20000 m
Wavelength:: 1550 nm
Fiber mode structure:: Single-mode

Weight & dimensions

Height:: 27 mm
Width:: 94.5 mm
Depth:: 73 mm

Other features

I/O ports:: 1x 100M SC 1x 100M RJ45
Full duplex:: Yes

Power

Power consumption (max):: 1.23 W

Certificates

Certification:: FCC, CE

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 40
Storage relative humidity (H-H):: 5 - 90

Packaging data

Package weight:: 370 g
Package depth:: 204 mm
Package height:: 65 mm
Package width:: 165 mm

Features

Internal:: No
LED indicators:: Activity, Power
Product colour:: Black

Sustainability

Sustainability certificates:: RoHS
