Unmanaged Switch Mercusys MS105GS

Name: Unmanaged Switch Mercusys MS105GS 5-Port MS105GS
Brand: TP-LINK
SKU: 11078784
Price: 17.49 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

Unmanaged Switch Mercusys MS105GS 5-Port Gigabit Ethernet

Unmanaged Switch Mercusys MS105GS Photo 1

Unmanaged Switch Mercusys MS105GS Photo 2

Unmanaged Switch Mercusys MS105GS Photo 3

Unmanaged Switch Mercusys MS105GS Photo 4

Unmanaged Switch Mercusys MS105GS Photo 5

Unmanaged Switch Mercusys MS105GS Photo 6

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Mercusys MS105GS is an unmanaged switch with 5 gigabit Ethernet ports, providing full duplex communication. It supports a MAC address table of 2000 entries and has a switching capacity of 10 Gbit/s. Ideal for expanding your network with reliable performance.

Available for order: 9 pcs.

Warranty: 2 Years

SKU: 11078784

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

17.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

17.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

22.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.03 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

22.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

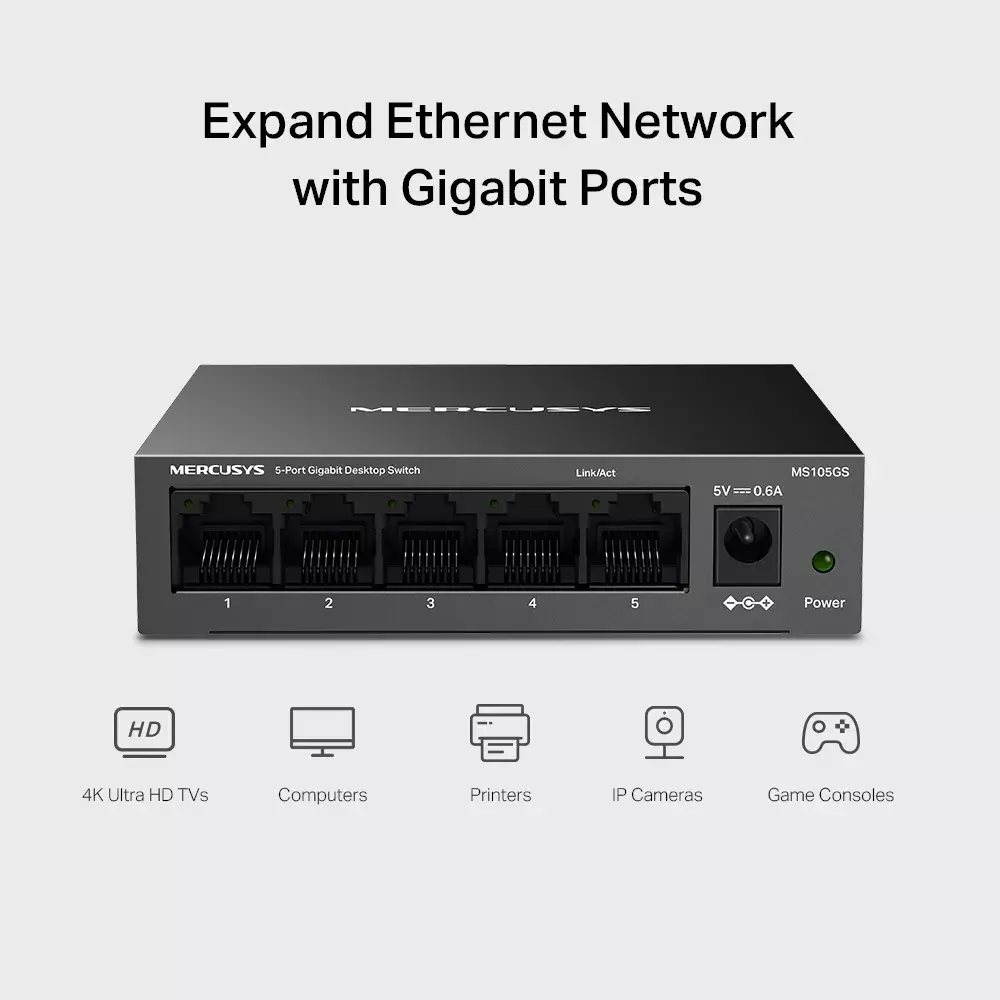

The Unmanaged Switch Mercusys MS105GS 5-Port Gigabit Ethernet provides five 10/100/1000 Mbps RJ-45 ports to expand a wired network quickly and reliably. This compact, metal-cased desktop switch is compatible with 4K UHD TVs, computers, printers, IP cameras and game consoles, and is suitable for home, small office and dormitory environments. The MS105GS supports full and half duplex communication, a MAC address table of 2000 entries and a switching capacity of 10 Gbit/s, delivering stable wired connections without configuration.

Advantages

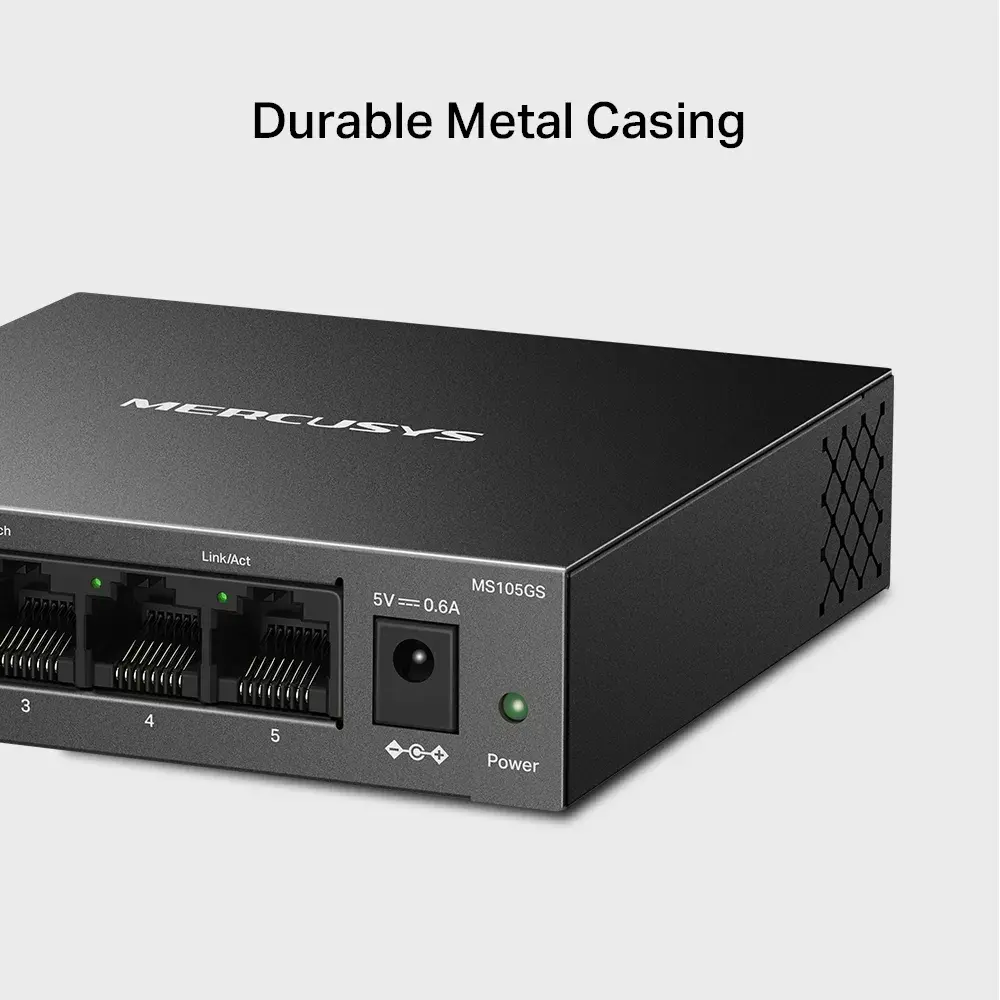

The switch offers plug-and-play operation with no setup required, durable metal housing for improved heat dissipation and reduced interference, and flexible placement options including desktop or wall mounting. Energy-efficient technology adjusts power consumption based on link status and cable length, reducing power usage. With MAC address learning and duplex modes, it provides reliable, uninterrupted switching performance for everyday networking needs.

Suitable for

Expanding wired connections for 4K UHD TVs
Connecting desktop computers and laptops
Linking printers and IP cameras
Gaming consoles and media players
Small office and dormitory network setups

Key specifications

Switch type: Unmanaged
Ports: 5 × 10/100/1000 Mbps RJ-45
Switching capacity: 10 Gbit/s
MAC address table: 2000 entries
Supported standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3p
Product colour: Black

How to use

Place the MS105GS on a desk or attach it to a wall using standard mounting points. Connect the switch to your router or modem using an Ethernet cable and then connect devices (TV, PC, printer, camera, console) to the remaining ports. The switch will automatically negotiate link speed and duplex mode; no additional configuration is required.

Usage recommendations

For best performance, use quality Cat5e or Cat6 Ethernet cables and place the switch in a well-ventilated area to allow heat dissipation. If deploying multiple devices with heavy traffic, monitor device placement and cabling to minimize electromagnetic interference.

Specifications

Switch type:: Unmanaged
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
10G support:: No
Basic switching RJ-45 Ethernet ports quantity:: 5
Networking standards:: IEEE 802.3, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
Product colour:: Black

All features

Power over Ethernet (PoE)

Power over Ethernet (PoE):: No

Packaging content

Cables included:: AC
Quick start guide:: Yes

Management features

Switch type:: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 5
Power connector:: DC-in jack

Power

Power source:: DC
Input current:: 0.6
AC input frequency:: 50/60
AC input voltage:: 220
DC input voltage:: 5
Power consumption (max):: 3.614 W
Power supply included:: Yes

Certificates

Certification:: CE, RoHS

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 40
Storage relative humidity (H-H):: 5 - 95
Heat dissipation:: 12.331 BTU/h

Network

Full duplex:: Yes
Networking standards:: IEEE 802.3, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
Flow control support:: Yes
Auto MDI/MDI-X:: Yes
10G support:: No
Auto-negotiation:: Yes
MAC address auto-learning supported:: Yes
MAC address auto-aging supported:: Yes
Half duplex:: Yes

Optical fiber

Transmission distance (max):: 0.1 km

Data transmission

MAC address table:: 2000 entries
Switching capacity:: 10 Gbit/s
Jumbo frames support:: Yes
Store-and-forward:: Yes
Packet buffer memory:: 0.125 MB
Jumbo frames:: 9000

Weight & dimensions

Height:: 25.1 mm
Width:: 99.8 mm
Depth:: 98 mm

Design

Rack mounting:: No
LED indicators:: Y
Wall mountable:: Yes
Product colour:: Black
Stackable:: No
Housing material:: Metal

Performance

Fanless:: Yes

Hide Show all

Instructions

mmo_113710566_1691155624_0334_2371.pdf

Description

Instructions

mmo_113710566_1691155624_0334_2371.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Unmanaged Switch Mercusys MS105GS cost, and is it available for purchase?

The price is 17.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 9 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 17.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All TP-LINK products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized TP-LINK service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: switch type, basic switching rj-45 ethernet ports type, 10g support, basic switching rj-45 ethernet ports quantity, networking standards, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Unmanaged Switch Mercusys MS105GS?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
