Managed Switch TP-Link Omada SG3218XP-M2

Name: Managed Switch TP-Link Omada SG3218XP-M2 SG3218XP-M2
Brand: TP-LINK
SKU: 10759196
Price: 521.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Managed Switch TP-Link Omada SG3218XP-M2 16-Port 2.5G 8-Port PoE

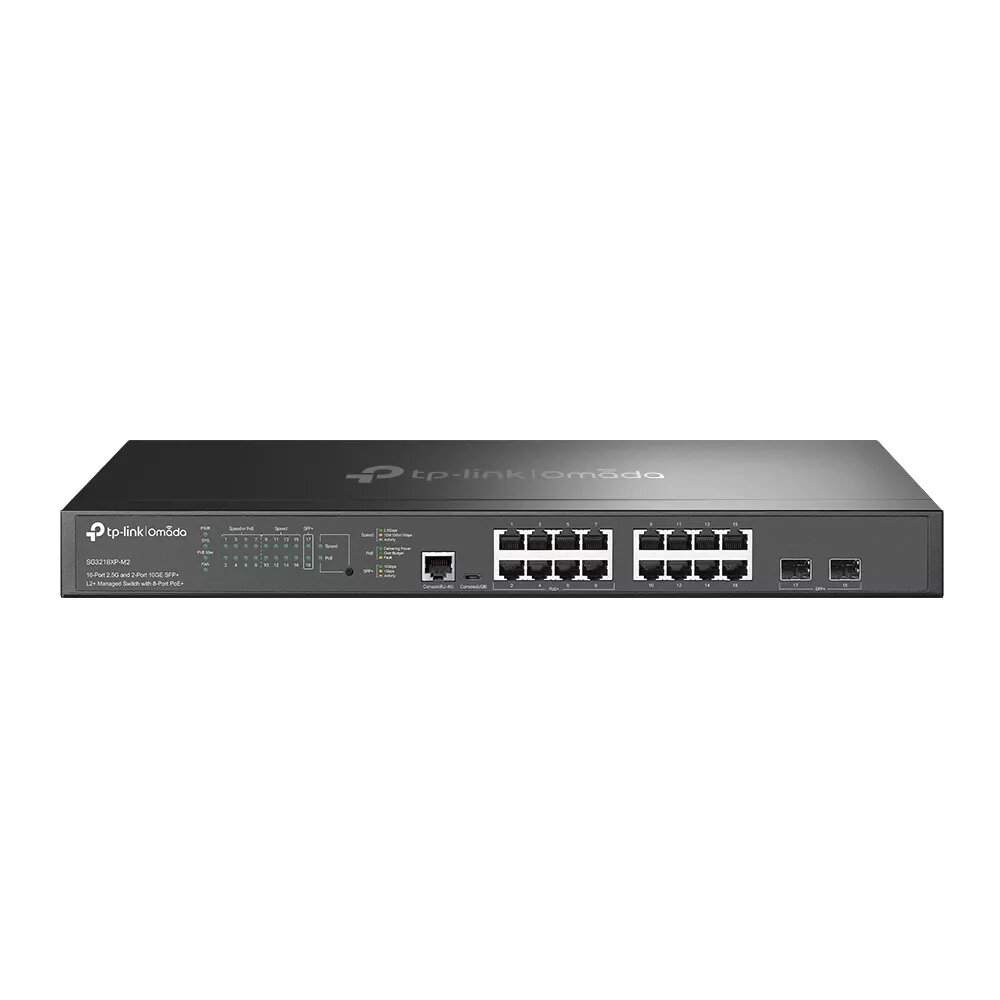

Managed Switch TP-Link Omada SG3218XP-M2 Photo 1

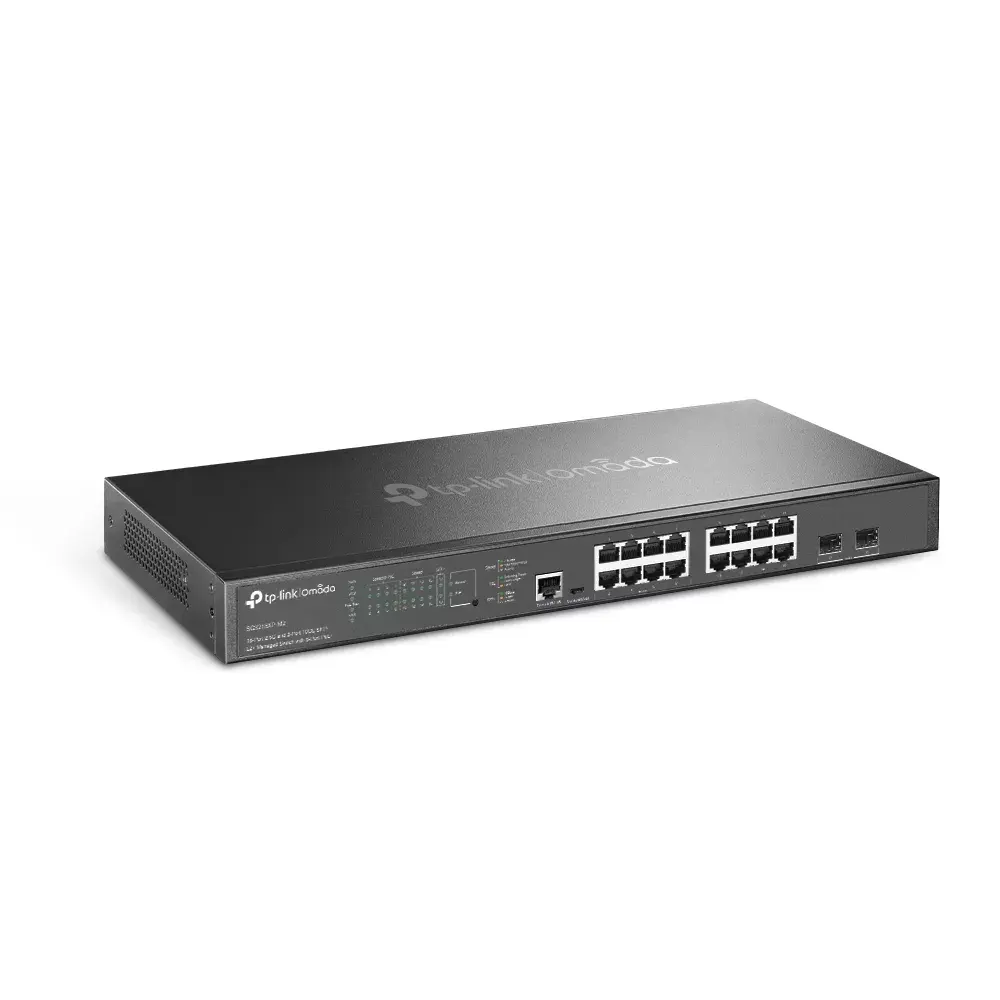

Managed Switch TP-Link Omada SG3218XP-M2 Photo 2

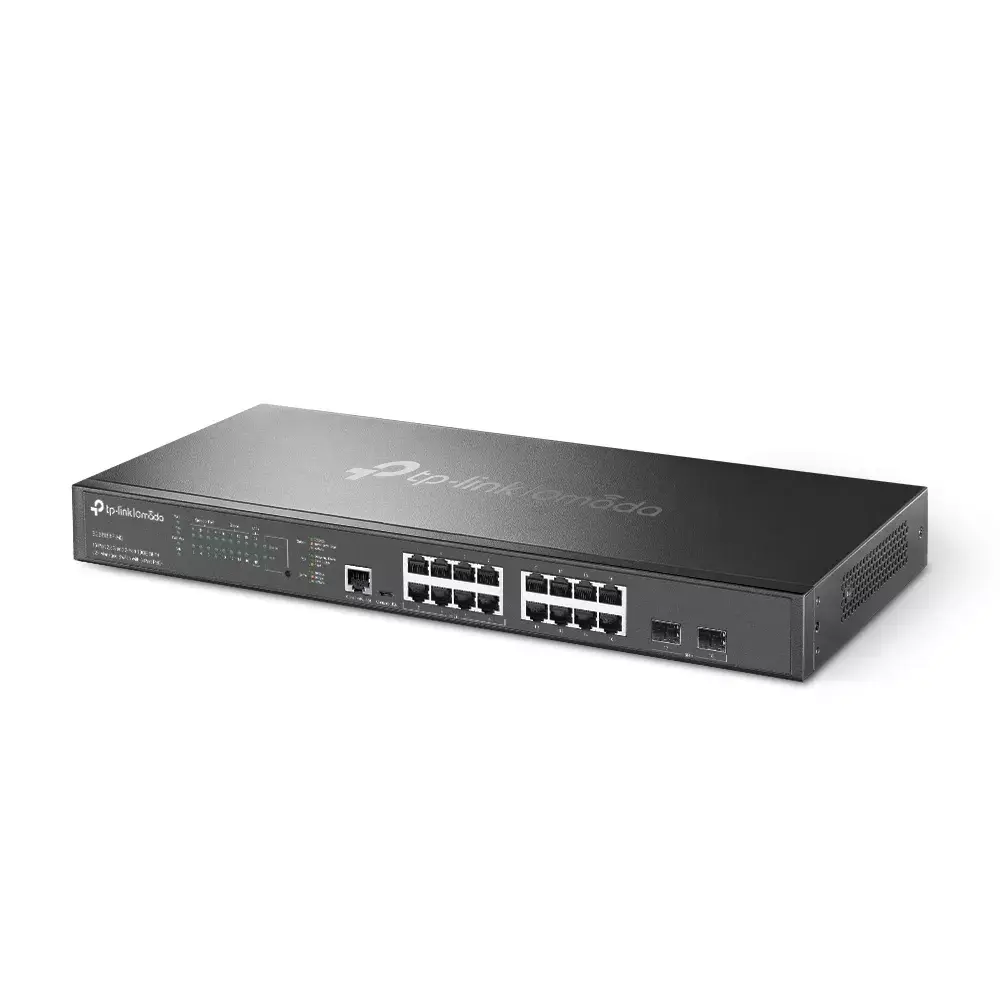

Managed Switch TP-Link Omada SG3218XP-M2 Photo 3

Managed Switch TP-Link Omada SG3218XP-M2 Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The TP-Link Omada SG3218XP-M2 is a managed switch featuring 16 2.5G Ethernet ports and 8 PoE+ ports. It supports L2+ switching with a capacity of 120 Gbit/s and a MAC address table of 16000 entries. Ideal for network expansion and efficient power delivery.

Available at price 521.49 €: 5 pcs.

Total available for order: 18 pcs.

Warranty: 2 Years

SKU: 10759196

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 3.29 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 579.99 €: 3 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Ultrafast 2.5G PoE+ managed switch with 10G uplink designed for modern networks. This switch provides sixteen 2.5 Gbps ports for multi-gigabit connections to WiFi 7/6E/6 access points, two 10 Gbps SFP+ uplink slots for high-bandwidth aggregation, and an overall PoE budget of 250 W with eight PoE+ 2.5G ports. Centralized cloud management through an SDN platform enables unified control of access points, switches and gateways, while advanced L2+ and L3 features support scalable deployment for enterprises, campuses and service providers.

Advantages

The switch delivers multi-gigabit wired connectivity tailored for next-generation WiFi APs and supports PoE+ power delivery over a single Ethernet cable, simplifying installation. Dual 10G SFP+ uplinks ensure low-latency, high-throughput connections to servers or core switches. Integrated SDN cloud management provides centralized configuration and monitoring across wired and wireless infrastructure. Comprehensive security and L3 features allow segmentation, access control and defense against common network threats.

Key specifications

16 × 2.5 Gbps RJ45 ports
8 × PoE+ 2.5 G ports, total PoE budget: 250 W
2 × 10 Gbps SFP+ slots (uplink)
Managed switch with L2+ and advanced L3 features
SDN-compatible with centralized cloud management
Security: IP-MAC-Port-VID binding, Port Security, DHCP Snooping, ACL (L2–L4), DoS protection
QoS support for voice and video prioritization
ISP features: QinQ, L2PT PPPoE ID insertion, IGMP authentication, 802.3ah OAM, DLDP
IPv6 support: Dual stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, PMTU Discovery

How to use

Install the switch in a rack or on a stable surface, connect APs and wired devices to the 2.5 Gbps ports, and use the two 10 Gbps SFP+ slots for uplinks to servers or aggregation switches. Configure PoE settings per port to allocate power to access points or other PoE devices, ensuring the total powered load does not exceed the 250 W budget. Use the SDN cloud controller to provision VLANs, security policies, QoS rules and monitoring across the network. When deploying advanced L3 routing or ISP features, follow standard network planning practices to assign IP subnets and route entries.

Recommendations

For optimal performance, connect WiFi 7/6E/6 access points to the 2.5G PoE+ ports and use the 10G SFP+ uplinks for aggregation to your core network. Monitor PoE consumption and distribute high-power devices across available ports to avoid exceeding the 250 W budget. Use the cloud SDN controller for centralized updates and policy enforcement.

Specifications

Basic switching RJ-45 Ethernet ports quantity:: 16
10G support:: Yes
Switch type:: Managed
Basic switching RJ-45 Ethernet ports type:: 2.5G Ethernet (100/1000/2500)
Networking standards:: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
Product colour:: Black

All features

Ports & interfaces

Console port:: RJ-45/Micro-USB
Basic switching RJ-45 Ethernet ports type:: 2.5G Ethernet (100/1000/2500)
Basic switching RJ-45 Ethernet ports quantity:: 16
SFP+ module slots quantity:: 2
Power connector:: AC-in jack

Data transmission

MAC address table:: 16000 entries
Switching capacity:: 120 Gbit/s
Jumbo frames support:: Yes
Forwarding rate:: 89.28 Mpps
Packet buffer memory:: 12 MB
Number of static routes:: 48
Number of IP interfaces:: 32
Jumbo frames:: 9000
Static route:: Yes

Design

Rack mounting:: Yes
Form factor:: 1U
LED indicators:: Y
Product colour:: Black
Number of fans:: 2 fan(s)

Power

Power source:: AC
AC input frequency:: 50/60
AC input voltage:: 100 - 240
Power consumption (max):: 299.4 W
Power supply included:: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):: Yes
Power over Ethernet plus (PoE+) ports quantity:: 8
Total Power over Ethernet (PoE) budget:: 240 W
Power over Ethernet (PoE) power per port:: 30 W

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 50
Storage relative humidity (H-H):: 5 - 90
Heat dissipation:: 1021.64 BTU/h

Weight & dimensions

Height:: 44 mm
Width:: 440 mm
Depth:: 180 mm

Management features

MIB support:: MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB
Switch layer:: L2+
Quality of Service (QoS) support:: Yes
Web-based management:: Yes
System event log:: Yes
Switch type:: Managed
ARP inspection:: Yes
Configuring Location Settings (CLI):: Yes
Cloud-managed:: Yes

Network

Networking standards:: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
Flow control support:: Yes
Port mirroring:: Yes
Link aggregation:: Yes
Broadcast storm control:: Yes
Rate limiting:: Yes
IP routing:: Yes
Ethernet LAN data rates:: 100, 1000, 2500
Spanning tree protocol:: Yes
Head-of-line (HOL) blocking:: Yes
VLAN support:: Yes
10G support:: Yes
Virtual LAN features:: MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Security

Security algorithms:: HTTPS, SSH, SSH-2, SSL/TLS
MAC address filtering:: Yes
Static port security:: Yes
Access Control List (ACL):: Yes
SSH/SSL support:: Yes
IGMP snooping:: Yes
Authentication type:: AAA, TACACS+
Password protection:: Yes
Loop protection:: Yes
BPDU filtering/protection:: Yes
IP-MAC-Port binding:: Yes
Authentication:: MAC-based authentication, Port-based authentication
Queue scheduling algorithms:: SP, WRR+SP, Weighted Round Robin (WRR)
DHCP features:: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

Multicast features

Multicast support:: Yes
Multicast Listener Discovery (MLD) snooping:: Yes

Protocols

Management protocols:: SNMP v1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP):: Yes

Packaging content

Cables included:: AC
Quick start guide:: Yes

Sustainability

Sustainability compliance:: Yes
Sustainability certificates:: Federal Communications Commission (FCC), RoHS

Certificates

Certification:: CE, FCC, RoHS

Packaging data

Package type:: Box

Hide Show all
