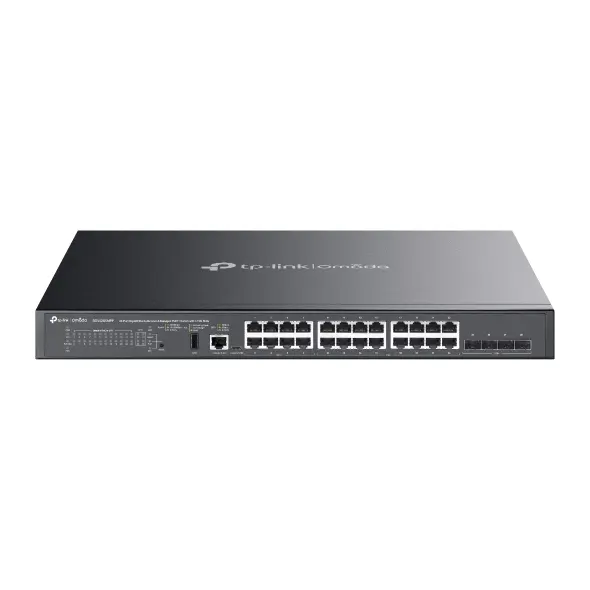

Managed Switch TP-Link SG5428XMPP

Name: Managed Switch TP-Link SG5428XMPP L3 SG5428XMPP(UN)
Brand: TP-LINK
SKU: 11433337
Price: 956.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Managed Switch TP-Link SG5428XMPP L3 Gigabit Ethernet 24 Ports PoE

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The TP-Link SG5428XMPP is a managed L3 switch with 24 Gigabit Ethernet ports and PoE support. It features a switching capacity of 128 Gbit/s and a MAC address table of 16000 entries, making it ideal for high-performance networking. It supports IEEE 802.3af, 802.3at, and 802.3bt standards, ensuring compatibility with various devices. Perfect for businesses needing reliable network infrastructure.

Available at price 956.49 €: 3 pcs.

Total available for order: 4 pcs.

Warranty: 2 Years

SKU: 11433337

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 5.85 € (Weight: 6.23 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 318.83 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment, Leasing for legal entities

36 months installment: from 26.57 euros per month

Leasing for legal entities: from 33.29 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Omada SG5428XMPP is a managed Layer 3 PoE++ switch designed for access-layer deployments in small and medium enterprises and ISPs. The unit provides 24 gigabit RJ45 ports with PoE (8 ports supporting IEEE 802.3bt and 16 ports supporting IEEE 802.3at/af), four 10 Gbps SFP+ slots, a 500W PoE budget, 128 Gbps switching capacity, and options for physical stacking and centralized management.

Advantages

The switch delivers high-density Power over Ethernet compliant with IEEE 802.3af/at/bt, a 500W total PoE budget, and Perpetual PoE that preserves power settings through reboots. It supports up to four stacked units for redundancy and increased throughput, integrates Layer 3 routing protocols (Static routing, RIP, OSPF), and includes DHCP Server and DHCP Relay. Security and management features include ACLs for IPv4/IPv6, Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, SSH/SSL encryption, SNMP (v1/v2c/v3), RMON, and both web GUI and CLI administration options. Integration with the Omada SDN platform provides centralized cloud management and Zero-Touch Provisioning.

Suitable for

Small and medium-sized business access networks
ISPs requiring managed access-layer switching
Deployments with multiple PoE devices (IP cameras, APs, VoIP phones)
Network environments needing Layer 3 routing at the access layer

Key specifications

Ports: 24 × Gigabit RJ45 (8 × PoE++/802.3bt, 16 × PoE+/802.3at/af), 4 × 10 Gbps SFP+
PoE budget: 500W total
Switching capacity: 128 Gbps
MAC address table: 16,000 entries (product data)
Layer 3 features: Static Routing, RIP, OSPF, DHCP Server, DHCP Relay
Stacking: up to 4 units (physical stacking)
Security: ACL (IPv4/IPv6), Dynamic ARP Inspection, 802.1X, MAB, Port Security, SSH/SSL
Management: Omada SDN cloud management, web GUI, CLI, SNMP v1/v2c/v3, RMON

How to use

Install the switch in a standard 19-inch rack or on a flat surface following the hardware installation guide. Connect upstream devices or core switches to the SFP+ or RJ45 uplink ports and connect access devices to the gigabit RJ45 ports. Configure PoE settings and power allocation via the web GUI, Omada Controller, or CLI. Use Omada SDN for centralized provisioning, firmware updates, and monitoring, or manage the unit locally using the built-in GUI or SSH/CLI. Ensure firmware is up to date and apply appropriate VLAN, routing, and ACL configurations according to your network design.

Usage recommendations

For stable operation, distribute PoE-powered devices to avoid exceeding the 500W budget, enable Perpetual PoE where uninterrupted power is required, and configure redundancy (stacking and ERPS) to maintain availability in critical deployments. Use Omada Controller for centralized monitoring and Zero-Touch Provisioning to simplify large-scale rollouts.

Specifications

Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Switch type:: Managed
Basic switching RJ-45 Ethernet ports quantity:: 24
10G support:: Yes
Networking standards:: IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af
Product colour:: Black

All features

Packaging content

Cables included:: AC
Quick start guide:: Yes
Rack mount kit:: Yes

Ports & interfaces

USB 2.0 ports quantity:: 1
Gigabit Ethernet (copper) ports quantity:: 24
Console port:: RJ-45
Installed SFP+ modules quantity:: 0
Installed SFP modules quantity:: 0
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 24
SFP+ module slots quantity:: 4
USB Type-C ports quantity:: 1

Management features

Switch layer:: L3
Quality of Service (QoS) support:: Yes
Web-based management:: Yes
Switch type:: Managed
ARP inspection:: Yes
Cloud-managed:: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):: Yes
Power over Ethernet plus (PoE+) ports quantity:: 16
Total Power over Ethernet (PoE) budget:: 500 W
Power over Ethernet (PoE) power per port:: 90 W
Power over Ethernet (PoE) type supported:: PoE++ (4PPoE), PoE+
Power over Ethernet 4PPoE (PoE++) ports quantity:: 8

Power

Power source:: AC/PoE
Surge protection voltage:: 6 kV
Surge protection:: Yes
AC input frequency:: 50/60
AC input voltage:: 100 - 240
Power consumption (max):: 587.7 W
Power supply included:: Yes

Performance

Processor frequency:: 1200 MHz
Internal memory:: 2000 MB
Mean time between failures (MTBF):: 292.83 h
Flash memory:: 512 MB
Memory type:: DRAM
Processor manufacturer:: ARM
Firmware upgradeable:: Yes
Built-in processor:: Yes
Physical stacking (units):: 4
Telnet:: Yes

Design

Rack mounting:: Yes
LED indicators:: Y
Product colour:: Black
Stackable:: Yes
Number of fans:: 3 fan(s)

Multicast features

Multicast support:: Yes

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: -5 - 45
Storage relative humidity (H-H):: 5 - 90

Other features

Management level:: 4
Bandwidth:: 64 Gbit/s

Security

Security algorithms:: SNMPv3, SNMPv2, SNMP
MAC address filtering:: Yes
Static port security:: Yes
SSH/SSL support:: Yes
IGMP snooping:: Yes
Password protection:: Yes
IP-MAC-Port binding:: Yes
DHCP features:: DHCP relay, DHCP server

Data transmission

MAC address table:: 16000 entries
Switching capacity:: 128 Gbit/s
Jumbo frames support:: Yes
Store-and-forward:: Yes
Forwarding rate:: 95.23 Mpps
Packet buffer memory:: 12 MB
Jumbo frames:: 9000

Network

Networking standards:: IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af
Port mirroring:: Yes
Link aggregation:: Yes
Broadcast storm control:: Yes
Number of VLANs:: 4000
VLAN support:: Yes
10G support:: Yes
Virtual LAN features:: Protocol-based VLAN, Private VLAN, MAC address-based VLAN, Voice VLAN

Weight & dimensions

Height:: 44 mm
Width:: 440 mm
Depth:: 330 mm

Certificates

Compliance certificates:: RoHS, CE, Federal Communications Commission (FCC)

Hide Show all

Instructions

mmo_125095824_1742390999_3108_150350.pdf

tp-link-SG5428XMPP(UN)-11433337.pdf

Description

Instructions

mmo_125095824_1742390999_3108_150350.pdf

tp-link-SG5428XMPP(UN)-11433337.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Warehouse	Stock	Delivery to the store	Store Price
WH94	3	01.07.2026 Best delivery	956.49 €
EU85	1	01.07.2026 Best delivery	957.99 €

956.49 €

Stock: 3

Delivery Date: 01.07.2026 Best delivery

Warehouse: WH94

957.99 €

Stock: 1

Delivery Date: 01.07.2026 Best delivery

Warehouse: EU85

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Managed Switch TP-Link SG5428XMPP cost, and is it available for purchase?

The price is 956.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 4 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 01.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment, Leasing for legal entities. All transactions are 100% secure and encrypted.

Can Managed Switch TP-Link SG5428XMPP be purchased with a lease?

Yes, the purchase is available both on credit and with an interest-free installment plan. We work with leading banks and leasing companies in Latvia, allowing you to make your purchase on convenient terms — with a minimal down payment and a repayment period from 3 to 36 months. You can apply for credit or installments for the Managed Switch TP-Link SG5428XMPP online, and the application process is as simple as possible:

Select the product on the website and add it to your cart;
When placing your order, choose the payment method “Installments”;
Fill in the required details for the lending partner;
Receive a decision within a few minutes.

For more information about available payment options, interest-free installment terms, and credit conditions in Latvia, please visit the Payment page.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All TP-LINK products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized TP-LINK service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: basic switching rj-45 ethernet ports type, switch type, basic switching rj-45 ethernet ports quantity, 10g support, networking standards, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Managed Switch TP-Link SG5428XMPP?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.

Show all questions
