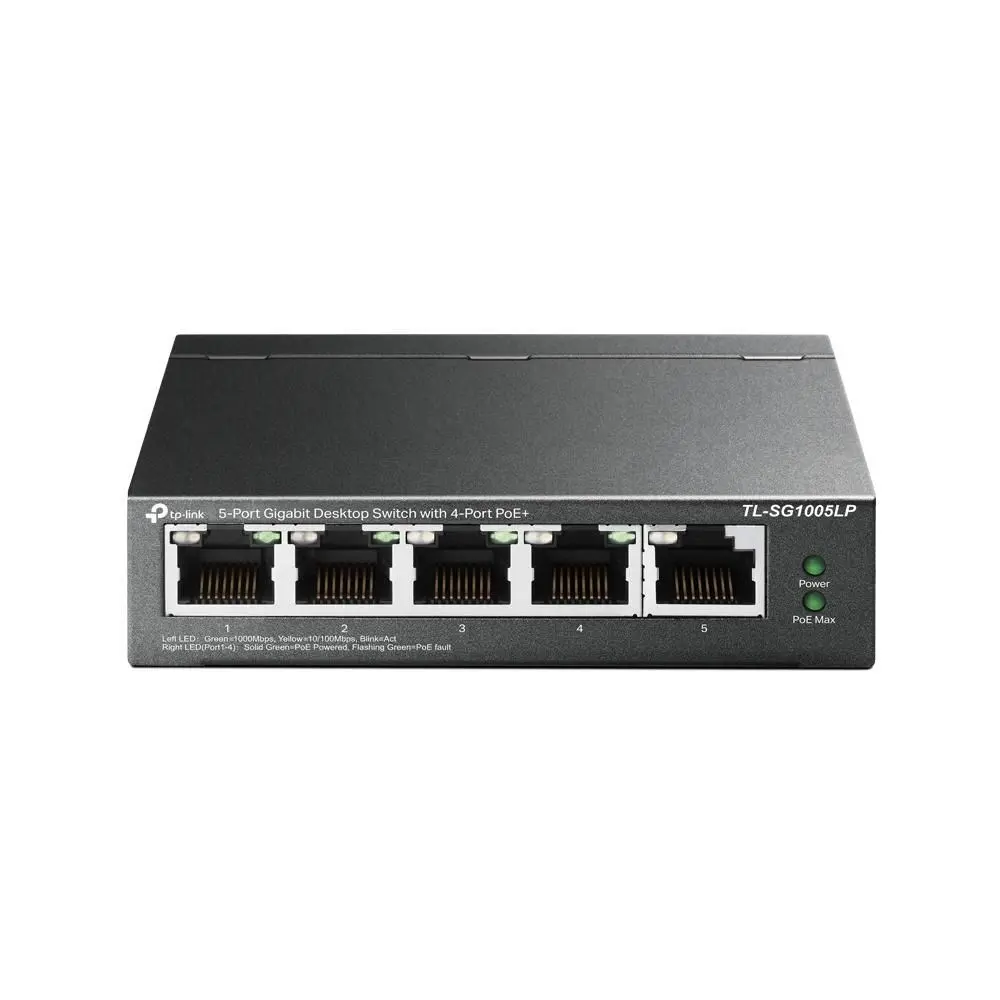

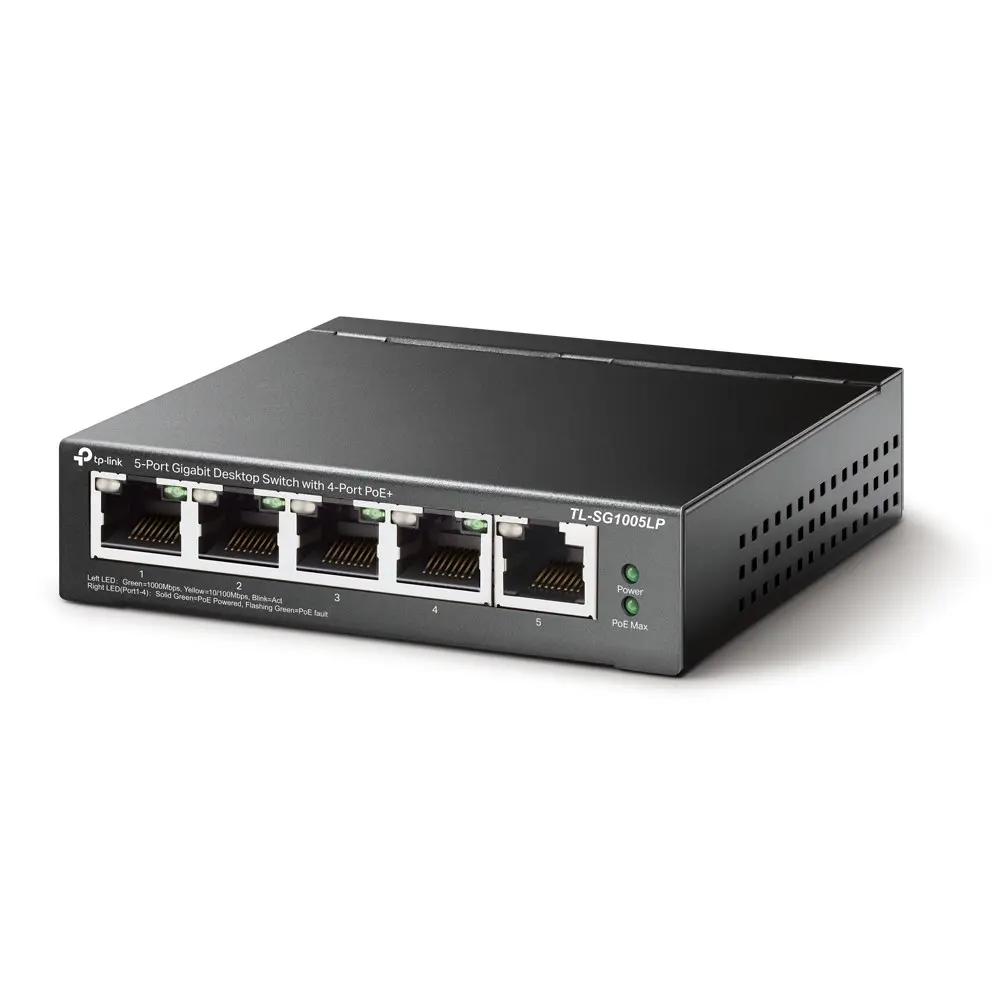

Unmanaged Switch TL-SG1005LP

Name: Unmanaged Switch TP-Link TL-SG1005LP TL-SG1005LP
Brand: TP-LINK
SKU: 3602129
Price: 30.49 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

Unmanaged Switch TP-Link TL-SG1005LP

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The TP-Link TL-SG1005LP is an unmanaged Gigabit Ethernet switch with 5 ports, supporting Power over Ethernet (PoE). It features a switching capacity of 10 Gbit/s and a MAC address table with 2000 entries. Compliant with multiple networking standards, it operates at a DC input voltage of 53.5 V. Ideal for wall mounting, this switch is perfect for expanding your network with reliable performance.

Available at price 30.49 €: 2 pcs.

Total available for order: 279 pcs.

Warranty: 2 Years

SKU: 3602129

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

18.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

18.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

25.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.74 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

25.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The TP-Link TL-SG1005LP is an unmanaged 5-port Gigabit Ethernet switch with four PoE+ ports, designed to expand wired networks and supply power to compatible devices. It supports IEEE 802.3af/at standards and offers a switching capacity of 10 Gbit/s and a MAC address table of up to 2000 entries. The compact, metal-cased unit is suitable for desk or wall mounting and is intended for simple plug-and-play deployment.

Advantages

The switch provides four PoE+ ports with a combined 40 W power budget and up to 30 W per port, enabling direct power delivery to IP cameras, access points, IP phones and other PoE devices without separate power adapters. Intelligent power management reallocates power when consumption exceeds the total budget by cutting power to lower-priority ports, protecting higher-priority devices and preventing overload. Additional features such as QoS and IGMP Snooping improve traffic prioritization and multimedia delivery, while the metal housing increases durability and reliability.

Suitable for

Small office or home office network expansion
IP camera surveillance systems for small businesses, dormitories or offices
Connecting wireless access points and VoIP phones
Simple unmanaged network setups requiring PoE power

Key specifications

Ports: 5 × Gigabit RJ-45 (4 PoE+ ports)
PoE standard: IEEE 802.3af/at (PoE+)
PoE power budget: 40 W total; up to 30 W per port
Switching capacity: 10 Gbit/s
MAC address table: 2000 entries
Switch type: Unmanaged
Networking standards: IEEE 802.3u/802.3x/802.3i/802.3ab/802.1p
Product colour: Black
Input voltage: DC 53.5 V

How to use

Install the TL-SG1005LP on a flat surface or mount it on a wall using compatible screws. Connect your network devices to the RJ-45 ports using Cat5e or better Ethernet cables. PoE-capable devices connected to the four PoE ports will receive power automatically once the switch is powered on; non-PoE devices can be connected to the remaining ports without risk. No configuration is required for basic operation—the switch functions plug-and-play.

Usage recommendations

Place the switch in a well-ventilated area away from direct heat sources. When connecting multiple high-power PoE devices, consider the 40 W total budget and assign critical devices to higher-priority ports or stagger device power-up to avoid automatic power reduction on lower-priority ports.

Specifications

Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Switch type:: Unmanaged
Basic switching RJ-45 Ethernet ports quantity:: 5
10G support:: No
Networking standards:: IEEE 802.3u, IEEE 802.3x, IEEE 802.3i, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ab, IEEE 802.1p
Product colour:: Black

All features

Ports & interfaces

Gigabit Ethernet (copper) ports quantity:: 5
Installed SFP+ modules quantity:: 0
Installed SFP modules quantity:: 0
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 5

Management features

Quality of Service (QoS) support:: Yes
Switch type:: Unmanaged

Sustainability

Sustainability compliance:: Yes

Power

Power source:: DC/PoE
Input current:: 0.81
AC input frequency:: 50/60
AC input voltage:: 100 - 240
DC input voltage:: 53.5
Power consumption (max):: 47.5 W
Power supply included:: Yes

Logistics data

Harmonized System (HS) code:: 85176990

Certificates

Certification:: FCC, CE, RoHS
Compliance certificates:: RoHS, Federal Communications Commission (FCC), CE

Packaging data

Package weight:: 730 g
Package depth:: 196 mm
Package height:: 121 mm
Package width:: 131 mm
Package type:: Box

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 40
Storage relative humidity (H-H):: 5 - 90
Heat dissipation:: 161.98 BTU/h

Packaging content

User guide:: Yes

Weight & dimensions

Height:: 25 mm
Width:: 99.8 mm
Depth:: 98 mm

Power over Ethernet (PoE)

Power over Ethernet (PoE):: Yes
Power over Ethernet plus (PoE+) ports quantity:: 4
Total Power over Ethernet (PoE) budget:: 40 W

Performance

Maximum cable length:: 100 m
Fanless:: Yes

Data transmission

MAC address table:: 2000 entries
Switching capacity:: 10 Gbit/s
Jumbo frames support:: Yes
Store-and-forward:: Yes
Forwarding rate:: 7.44 Mpps
Jumbo frames:: 16000

Design

Rack mounting:: No
LED indicators:: Y
Wall mountable:: Yes
Product colour:: Black
Stackable:: No

Security

IGMP snooping:: Yes

Network

Networking standards:: IEEE 802.3u, IEEE 802.3x, IEEE 802.3i, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ab, IEEE 802.1p
Flow control support:: Yes
Auto MDI/MDI-X:: Yes
10G support:: No
Copper ethernet cabling technology:: 1000BASE-T, 100BASE-TX, 10BASE-T
Cable types supported:: Cat5e, Cat5, Cat4, Cat3, Cat6
Auto-negotiation:: Yes
MAC address auto-learning supported:: Yes
MAC address auto-aging supported:: Yes
