Switch TL-SG105PE

Name: Switch TP-Link TL-SG105PE 5-Port Gigabit TL-SG105PE
Brand: TP-LINK
SKU: 3585571
Price: 39.99 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

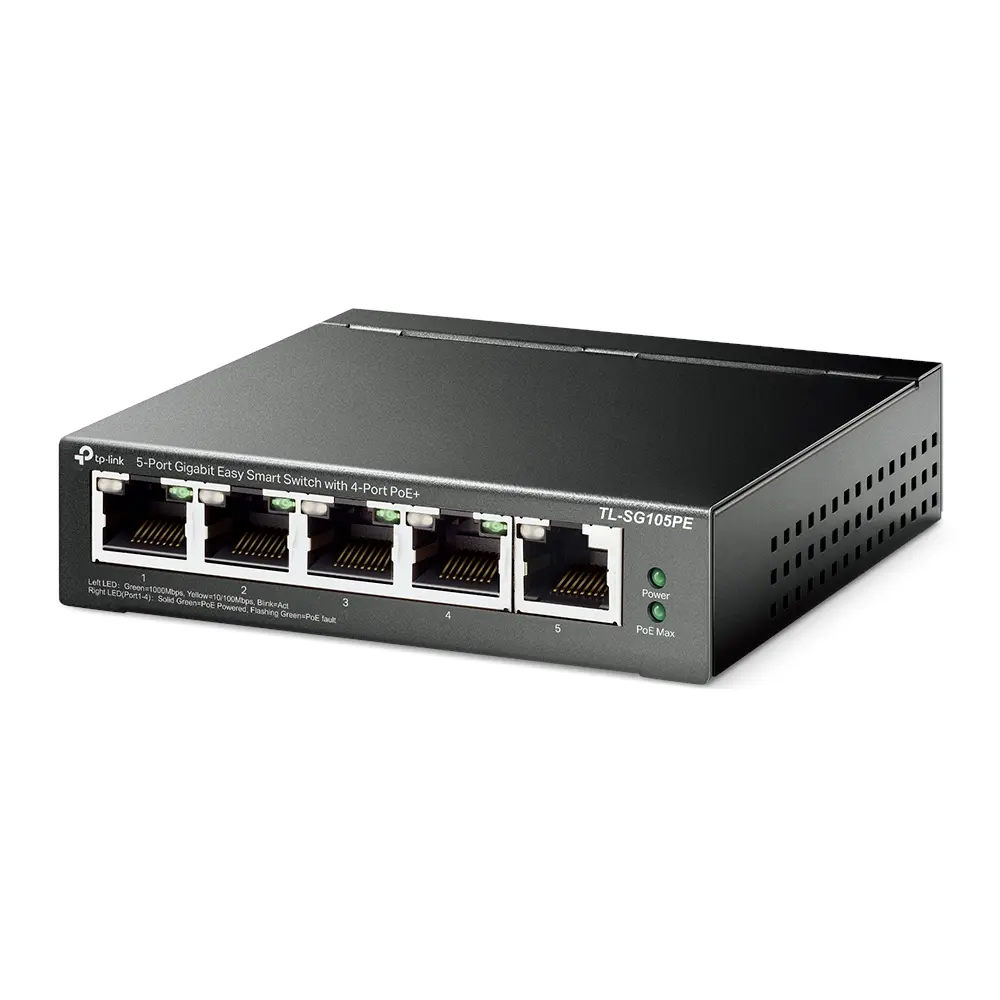

Switch TP-Link TL-SG105PE 5-Port Gigabit Easy Smart PoE

Fast shipping

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The TP-Link TL-SG105PE is a 5-Port Gigabit Easy Smart PoE Switch with 4 PoE+ ports. It features managed L2 switching, 10 Gbit/s switching capacity, and a MAC address table with 2000 entries. Compliant with IEEE networking standards, it supports Power over Ethernet (PoE) for easy device connectivity and power supply. Ideal for small to medium networks, it offers reliable performance and easy management.

Available at price 39.99 €: 13 pcs.

Total available for order: 398 pcs.

Warranty: 5 Years

SKU: 3585571

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

Monday {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

Monday {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

18.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.78 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

18.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The TL-SG105PE is a 5-port Gigabit Easy Smart Switch with four PoE+ ports, designed for small businesses that need simple network management and Power over Ethernet capability. It connects and powers up to four IEEE 802.3af/at-compliant devices such as wireless access points, IP cameras and IP phones, while offering web-based management and a management utility for monitoring and configuration.

Advantages

The switch provides PoE+ on ports 1–4, intelligent power management with port priority to protect the system from overload, and PoE Auto Recovery to reboot unresponsive PoE devices. It adds useful management features beyond an unmanaged switch, including traffic prioritization (Port Priority, 802.1P and DSCP), enhanced QoS, network monitoring, Port Mirroring, Loop Prevention and Cable Diagnostics. VLAN support (port-based, 802.1Q tag-based and MTU VLAN) improves security and network segmentation. Compact size, Auto MDI/MDI-X and auto-negotiation simplify installation and daily use.

Key specifications

Ports: 5 × Gigabit RJ45
PoE ports: 4 (ports 1–4) supporting IEEE 802.3af/at
PoE management: Priority order (port1 > port2 > port3 > port4) and overload protection
PoE Auto Recovery: automatic reboot of unresponsive PoE devices
VLAN: port-based VLAN, 802.1Q tag-based VLAN, MTU VLAN
QoS: Port Priority, 802.1P, DSCP
Management: web-based interface and management utility
Diagnostics: Port Mirroring, Loop Prevention, Cable Diagnostics
Auto features: Auto MDI/MDI-X, auto-negotiation (10/100/1000 Mbps)
Form factor: compact desktop-friendly design

How to use

Connect network devices to any of the five RJ45 ports; devices that require power should be connected to ports 1–4 to receive PoE. Access the web-based interface or the management utility from a connected PC to configure VLANs, QoS priorities and monitor traffic or diagnostics. The switch automatically negotiates link speed and crossover requirements, so no special cabling is needed. If total PoE power demand exceeds the budget, the built-in priority order will disable the lowest-priority PoE port(s) to protect the system.

Recommendations

Place the switch in a well-ventilated location and calculate total PoE power requirements of connected devices before deployment. Use the web interface to enable PoE Auto Recovery and configure QoS and VLAN settings to match your network segmentation and traffic priorities.

Specifications

Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Switch type:: Managed
Basic switching RJ-45 Ethernet ports quantity:: 5
10G support:: No
Networking standards:: IEEE 802.3at, IEEE 802.3x, IEEE 802.3u, IEEE 802.3i, IEEE 802.3af, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1Q
Product colour:: Black

All features

Ports & interfaces

Gigabit Ethernet (copper) ports quantity:: 5
Installed SFP+ modules quantity:: 0
Installed SFP modules quantity:: 0
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 5

Management features

Switch layer:: L2
Quality of Service (QoS) support:: Yes
Web-based management:: Yes
Switch type:: Managed

Packaging content

User guide:: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):: Yes
Power over Ethernet plus (PoE+) ports quantity:: 4
Total Power over Ethernet (PoE) budget:: 65 W
Power over Ethernet (PoE) power per port:: 30 W

Logistics data

Harmonized System (HS) code:: 85176990

Certificates

Certification:: FCC, CE, RoHS

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 40
Storage relative humidity (H-H):: 5 - 95
Heat dissipation:: 256.3 BTU/h

Power

Power source:: DC
Input voltage:: 53.5
Input current:: 1.31
Power consumption (max):: 75.16 W
Power supply included:: Yes

Data transmission

MAC address table:: 2000 entries
Switching capacity:: 10 Gbit/s
Jumbo frames support:: Yes
Number of queues:: 4
Store-and-forward:: Yes
Forwarding rate:: 7.44 Mpps
Packet buffer memory:: 1 MB
Jumbo frames:: 16000

Packaging data

Package weight:: 770 g
Package depth:: 196 mm
Package height:: 121 mm
Package width:: 131 mm

Weight & dimensions

Height:: 25 mm
Width:: 99.8 mm
Depth:: 98 mm

Network

Networking standards:: IEEE 802.3at, IEEE 802.3x, IEEE 802.3u, IEEE 802.3i, IEEE 802.3af, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1Q
Flow control support:: Yes
Port mirroring:: Yes
Link aggregation:: Yes
Broadcast storm control:: Yes
Rate limiting:: Yes
Auto MDI/MDI-X:: Yes
Number of VLANs:: 4000
VLAN support:: Yes
10G support:: No
Copper ethernet cabling technology:: 1000BASE-T, 100BASE-TX, 100BASE-FX, 10BASE-T
Cable types supported:: Cat5, Cat4, Cat3, Cat5e, Cat6
Auto-negotiation:: Yes
Virtual LAN features:: Tagged VLAN, Port-based VLAN

Performance

Fanless:: Yes

Design

Rack mounting:: No
LED indicators:: Status, Speed, Power, PoE, Link, Activity
Product colour:: Black

Security

IGMP snooping:: Yes
Loop protection:: Yes

Hide Show all
