header-product Managed Switch Trendnet TPE-P521ES
56.99 €

Managed Switch Trendnet TPE-P521ES

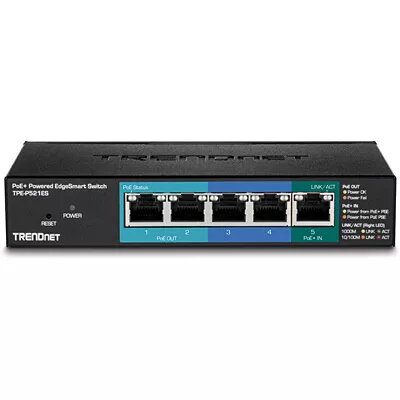

Managed Switch Trendnet TPE-P521ES Photo 1
Managed Switch Trendnet TPE-P521ES Photo 2
Managed Switch Trendnet TPE-P521ES Photo 3
Managed Switch Trendnet TPE-P521ES Photo 4
Managed Switch Trendnet TPE-P521ES Photo 1
Managed Switch Trendnet TPE-P521ES Photo 2
Managed Switch Trendnet TPE-P521ES Photo 3
Managed Switch Trendnet TPE-P521ES Photo 4
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed Switch Trendnet TPE-P521ES

{{email}}
You keep track of price changes

Managed Switch Trendnet TPE-P521ES

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Trendnet TPE-P521ES is a managed Gigabit Ethernet switch with 5 ports, supporting Power over Ethernet (PoE). It features a switching capacity of 10 Gbit/s and a MAC address table with 2048 entries. Compliant with various IEEE networking standards, this wall-mountable switch is ideal for efficient network management and power delivery to connected devices.
Available at price 56.99 €: 10 pcs.
Total available for order: 18 pcs.
Warranty: 2 Years
SKU: 933546
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
09.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
14.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.53 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
14.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The TRENDnet Managed Switch TPE-P521ES is a compact 5-port Gigabit Ethernet switch with Power over Ethernet (PoE+) support and PoE pass-through capability. It is powered by a PoE+ switch or injector, so no external AC adapter is required. The switch includes two Gigabit PoE ports for powering devices such as IP cameras, VoIP phones, and wireless access points, plus two Gigabit non‑PoE ports and one uplink port. EdgeSmart management provides a simplified web-based interface for VLAN, QoS and basic monitoring while keeping configuration straightforward.

Advantages

The TPE-P521ES offers PoE+ powered operation, eliminating the need for a separate power adapter and simplifying installation in locations without AC outlets. Its EdgeSmart feature set reduces unnecessary complexity by concentrating on commonly used managed switch functions like VLANs, QoS, IGMP Snooping and access control lists. The small, wall-mountable form factor and Gigabit ports provide efficient connectivity and power delivery for small networks and surveillance deployments.

Suitable for

  • Small office or home office (SOHO) networks requiring managed features
  • IP camera systems and surveillance deployments
  • VoIP telephony and SIP handset installations
  • Wireless access point deployments where PoE is needed

Key specifications

  • Model: TPE-P521ES
  • Ports: 5 × Gigabit Ethernet (two PoE+, two non‑PoE, one uplink)
  • PoE standard: IEEE 802.3at (PoE+), PoE pass-through supported
  • Switching capacity: 10 Gbit/s
  • MAC address table: 2048 entries
  • Networking standards: IEEE 802.3/802.3u/802.3ab/802.3ad/802.3af/802.3at/802.1Q/802.1p/802.1D/802.1w/802.3x/802.3az
  • Weight: 0.37 kg
  • Colour: Black

How to use

Mount the TPE-P521ES using the included wall‑mount points and connect a PoE+ source (PoE+ switch or injector) to the device to provide both power and network connectivity. Connect endpoints—IP cameras, VoIP phones, or access points—to the PoE ports to receive power, and use the non‑PoE ports for other wired devices or uplinks. Open the web-based EdgeSmart management interface from a browser to configure VLANs, QoS, IGMP Snooping and access control lists as needed for your network.

Usage recommendations

Use a rated PoE+ switch or injector that meets IEEE 802.3at requirements to ensure sufficient power delivery. For surveillance or multi-device installations, plan PoE budget per port and verify total available PoE power from the upstream power source.

Specifications

Switch type:
Managed
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Weight:
0.37 kg
Basic switching RJ-45 Ethernet ports quantity:
5
10G support:
No
Networking standards:
IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
Product colour:
Black
All features

Power over Ethernet (PoE)

Power over Ethernet (PoE):
Yes
Power over Ethernet (PoE) ports quantity:
2
Power over Ethernet plus (PoE+) ports quantity:
1
Total Power over Ethernet (PoE) budget:
18 W

Management features

Quality of Service (QoS) support:
Yes
Switch type:
Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
5

Performance

Mean time between failures (MTBF):
730455 h
Buffer size:
512 KB
Firmware upgradeable:
Yes

Protocols

Management protocols:
SNMP v1, v2c

Certificates

Certification:
CE, FCC

Operational conditions

Operating temperature (T-T):
0 - 40

Logistics data

Harmonized System (HS) code:
85176990

Weight & dimensions

Weight:
0.37 kg
Height:
28.6 mm
Width:
150 mm
Depth:
97 mm

Network

Networking standards:
IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
Port mirroring:
Yes
Broadcast storm control:
Yes
Number of VLANs:
4094
Spanning tree protocol:
Yes
VLAN support:
Yes
10G support:
No
Virtual LAN features:
Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN, Port-based VLAN

Data transmission

MAC address table:
2048 entries
Switching capacity:
10 Gbit/s
Jumbo frames support:
Yes
Forwarding rate:
7.44 Mpps
Jumbo frames:
9216

Power

Power protection features:
Over current, Short circuit
Power consumption (max):
20.4 W

Security

IGMP snooping:
Yes
Loop protection:
Yes

Multicast features

Multicast support:
Yes

Design

Rack mounting:
No
LED indicators:
Y
Wall mountable:
Yes
Product colour:
Black
Reset button:
Yes
