UBIQUITI LBE-5AC-16-120 bridge/repeater

Name: Bridge/repeater UBIQUITI LBE-5AC-16-120 5 GHz LBE-5AC-16-120
Brand: UBIQUITI
SKU: 3924497
Price: 92.99 EUR
Availability: OutOfStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

Bridge/repeater UBIQUITI LBE-5AC-16-120 5 GHz 2x2 MIMO 16 dBi 1000 Mbit/s

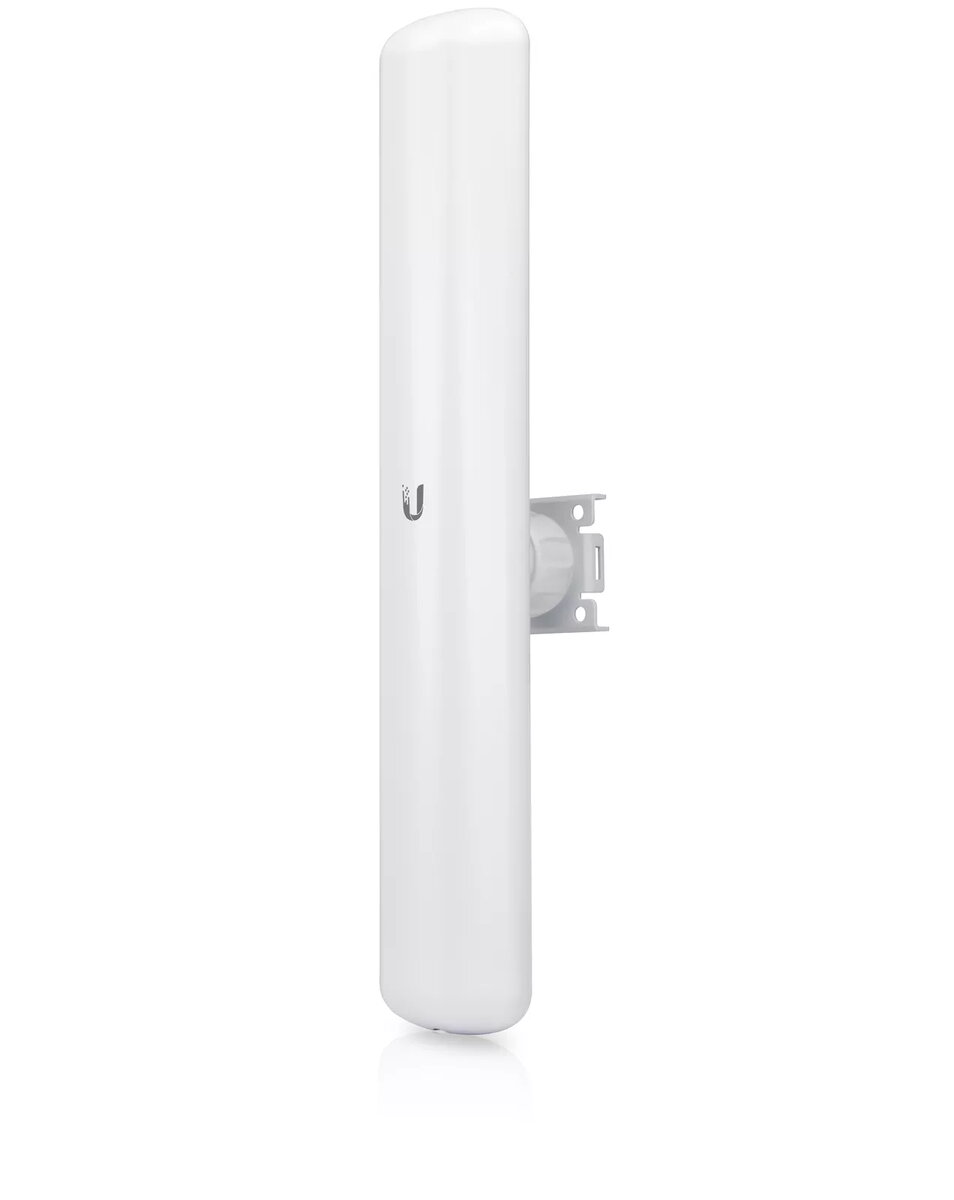

UBIQUITI LBE-5AC-16-120 bridge/repeater Photo 1

UBIQUITI LBE-5AC-16-120 bridge/repeater Photo 2

Short description

UBIQUITI LBE-5AC-16-120 is an outdoor bridge/repeater operating in the 5.15–5.875 GHz band with IEEE 802.11ac support. It features 2x2 MIMO, 16 dBi antenna gain and up to 1000 Mbit/s throughput. Designed for point-to-point or point-to-multipoint wireless links, it provides wired connectivity options for backhaul and network extension.

Warranty: 2 Years

SKU: 3924497

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Ubiquiti LiteBeam ac AP is a sector bridge/repeater with a 2x2 MIMO antenna designed to cover a 120° area. It operates in the 5.15–5.875 GHz band and supports IEEE 802.11ac networking with a maximum data rate of 1000 Mbit/s. The unit integrates a radio with a lightweight, low-profile white antenna and offers three-axis alignment for fast assembly and pole mounting.

Advantages

The device uses Ubiquiti’s airMAX ac engine with a custom IC to improve latency, throughput, and scalability. airOS7 adds real-time RF analytics via a dedicated airView processor. Its 2x2 MIMO antenna and sector coverage make it suitable for communicating with multiple CPEs across a wide angle, while the compact, lightweight design simplifies installation and reduces wind load.

Suitable for

Outdoor sector coverage for wireless ISP links
Extending a point-to-multipoint network using 5 GHz spectrum
Deployments requiring compact, low-wind-load antennas
Installations where quick alignment and tool-free assembly are preferred

When it may not be suitable

This unit is intended for outdoor 5 GHz point-to-multipoint links and may not be appropriate where 2.4 GHz coverage is required. It is a sector device rather than a narrow-beam dish, so for very long-distance, highly directional point-to-point links a different antenna type may perform better.

Key specifications

Frequency band: 5.15–5.875 GHz
Wireless standard: IEEE 802.11ac
Maximum data rate: up to 1000 Mbit/s
Antenna configuration: 2x2 MIMO sector
Maximum antenna gain: 16 dBi
Device colour: White
Weight: 0.42 kg

How to use

Mount the LiteBeam ac AP on a pole using the included mounting hardware and a single wrench for final tightening. Perform three-axis alignment to aim the sector coverage toward the served area, then connect to the wired network connection and configure the device using airOS7. Use the airView RF analytics to optimise channel selection and reduce interference.

What to consider before purchase

Requires 5 GHz spectrum availability in your area
Designed for sector point-to-multipoint use, not for 2.4 GHz or narrow-beam long-distance links
Check compatibility with your existing CPEs and network topology

Usage recommendations

For best performance, place the LiteBeam ac AP with a clear line of sight to the served CPEs, use airOS7 tools to monitor RF conditions, and choose non-overlapping channels to minimise interference in the 5 GHz band.

All features

Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.: 1000 Mbit/s
Power supply: The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.: 7 W
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.: Wired
Product type: The sub-category of the product.: 2x2 MIMO

Other features

Dimensions (WxDxH): Dimensions of the product (Width x Depth x Height).: 452.3 x 78.7 x 54.4

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: -40 - 70

Power

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: Yes
AC input voltage: The voltage of the AC electricity that is inputted into the product.: 24

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.42 kg

Certificates

Certification:: FCC, IC, CE, RoHS

Network

Frequency band: A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.: 5.15 - 5.875

Features

Product colour: The colour e.g. red, blue, green, black, white.: White
LED indicators:: Yes
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.11ac
Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.: 16 dBi
Internal memory: The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.: 64 MB
