Ugreen 4-Port HDMI KVM Switch - Black (CM293) Do you use more than one computer at the same time and want to connect one keyboard + mouse set to them? Or flash drive or printer? The Ugreen CM293 switch not only gives you this option, but also makes it easy to switch between devices . It's a great device if you want high-quality audio and video. Specification:

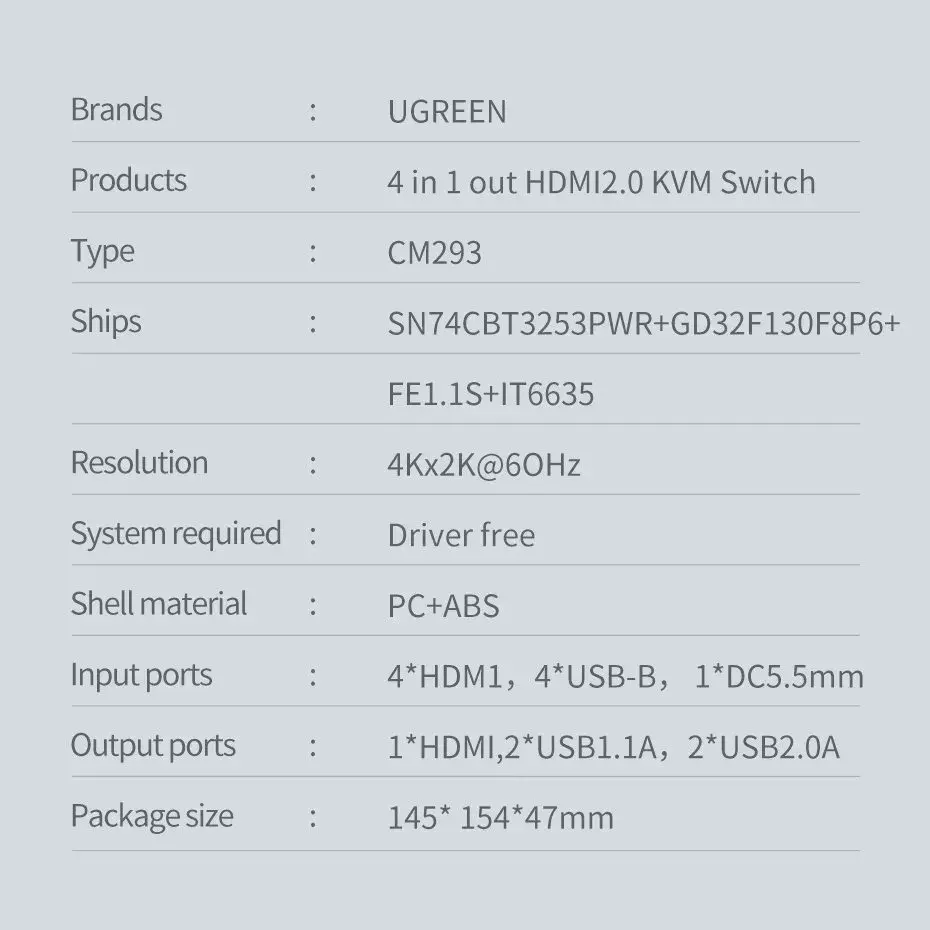

- Brand: Ugreen
- Model: CM293

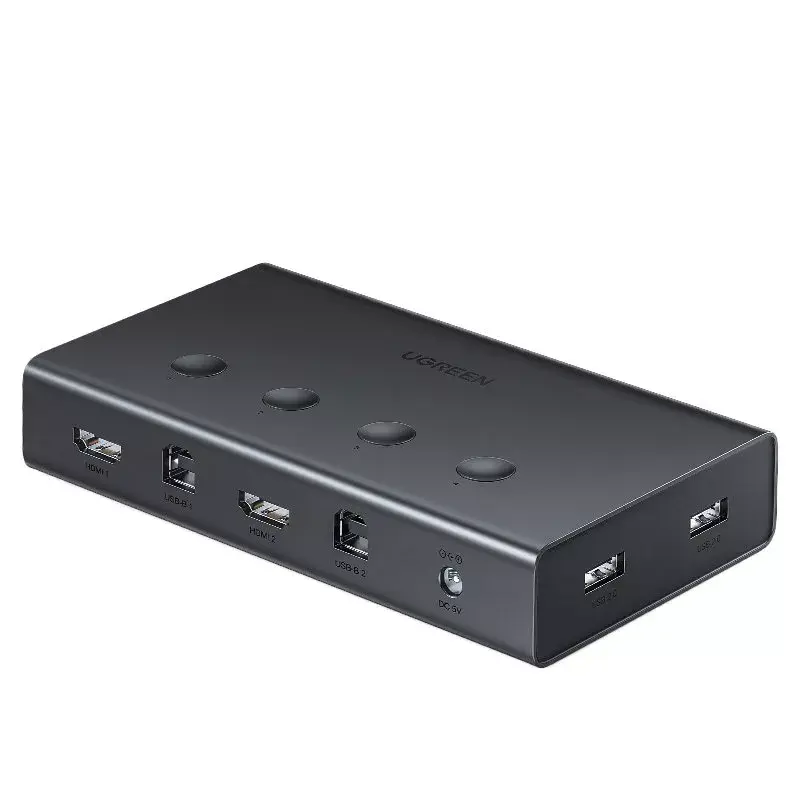

- Ports:
- 1 x HDMI 2.0 (output)
- 4 x HDMI 2.0 (input)
- 2 x USB Type A 1.1 (input)
- 2 x USB Type A 2.0 (input / output)
- 4 x USB Type B 2.0 (input / output)
- Video standards: HDCP2.2, HDCP1.4
- Supported Resolution:
- total length of HDMI cables up to 10 m - 4K @ 60Hz
- total length of HDMI cables up to 20 m - 4K @ 30Hz
- Audio support: 192KHz 24bit (max)
- Supported audio formats: DTS, DSD, Dolby AC3 5.1 & 7.1
- Included:
- 4 cables USB Type A male - USB Type B male, 1.5 m long
- 1 m power cable
- Dimensions: 110 x 65 x 20 mm
The most important advantages of the Ugreen CM293 KVM switch:

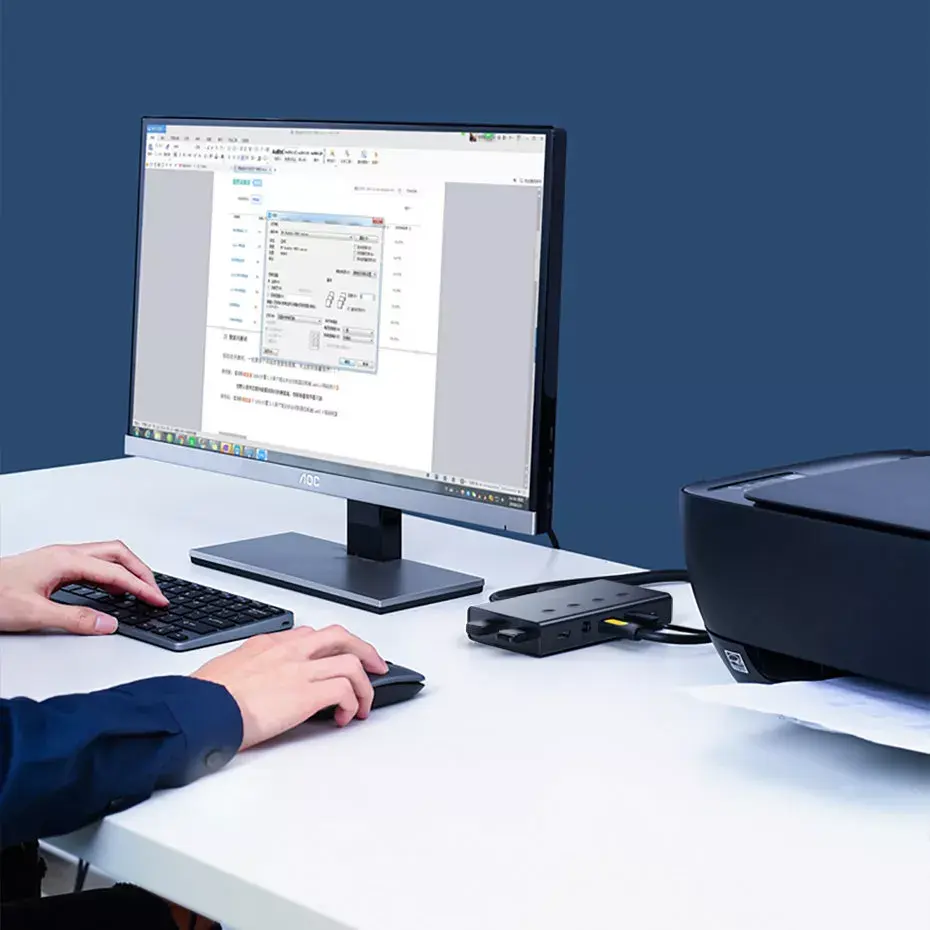

- You can connect one mouse, keyboard, printer or USB flash drive to up to 4 computers at the same time. The switch splits the signal from the input device to 4 USB and HDMI ports
- You don't need any software . The switch works in Plug and Play mode and is compatible with macOS, Windows and Linux
- You can easily handle your devices. All you need to do is use the buttons built into the switch

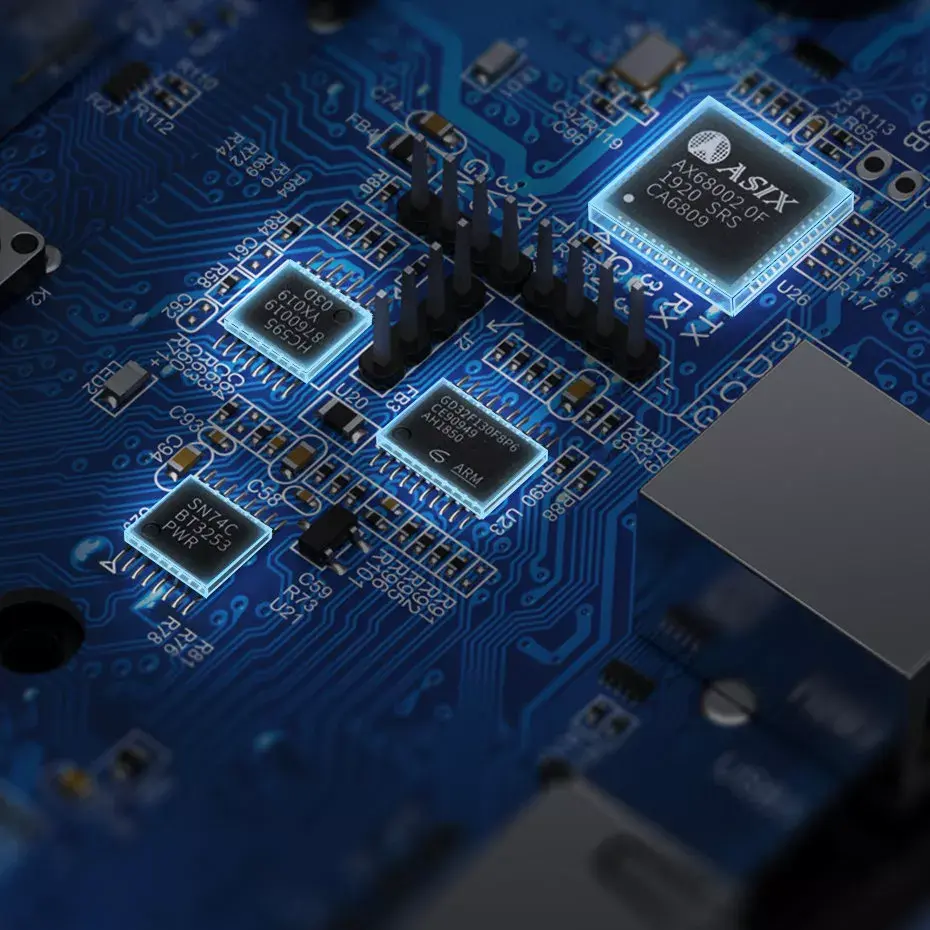

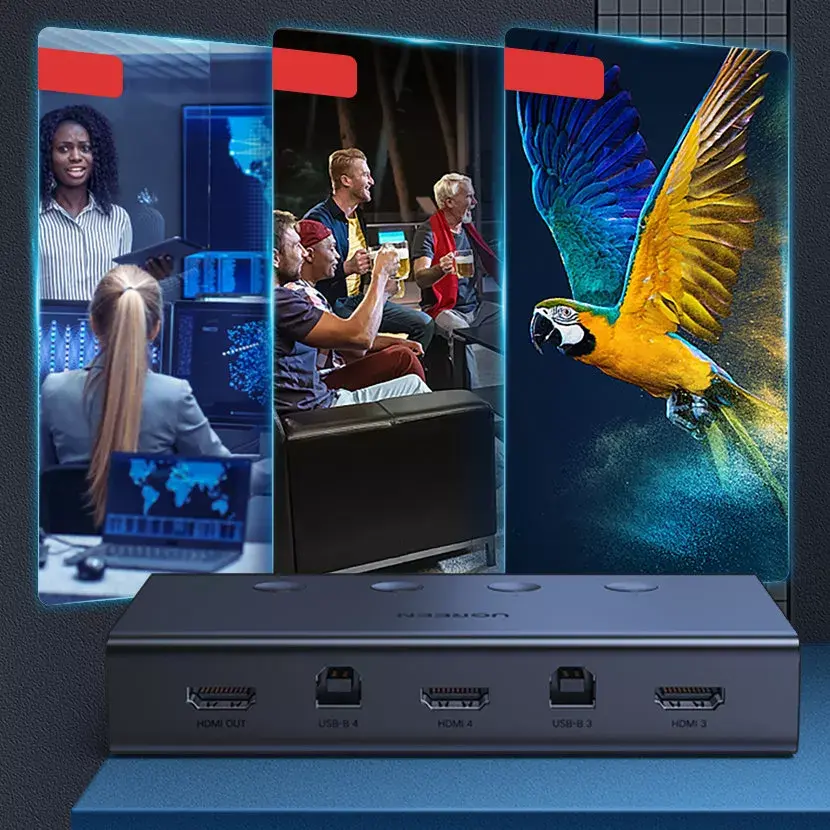

Multifunctionality at hand The functional adapter has as many as four HDMI inputs and four USB - including two USB Type A 1.1 and two USB Type A 2.0. Therefore, it allows you to connect one device to four computers at the same time , e.g. a mouse or keyboard, and even share a printer or USB flash drive. High definition audio and video The KVM switch ensures perfect synchronization of the audio and video signal. It supports DTS 5.1 and 7.1 audio formats, and the stable data transmission at speeds up to 18Gbps is ensured by four chips built into the device: FE 1.1S, IT6635, SN74CBT3253PWR and GD32F130F8P6. If the cables entering and exiting the device are 10 meters long in total, the device will display a high-definition image - even 4K / 60 Hz. Above 10 meters, the maximum resolution will be 4K / 30 Hz. Image resolution depends on the signal sent by your PC, laptop, video player or game console. Easy-to-use The device is compatible with macOS, Windows and Linux. You don't need any software for it: the switch is plug and play . To switch between computers, you can:

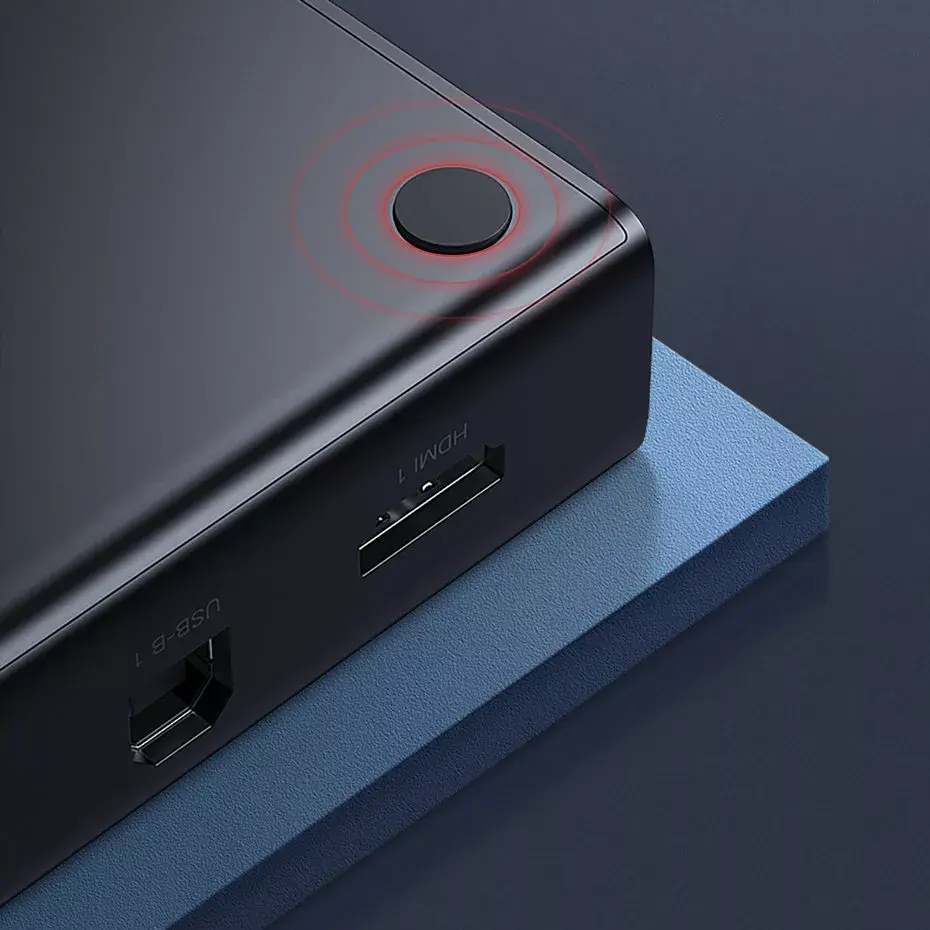

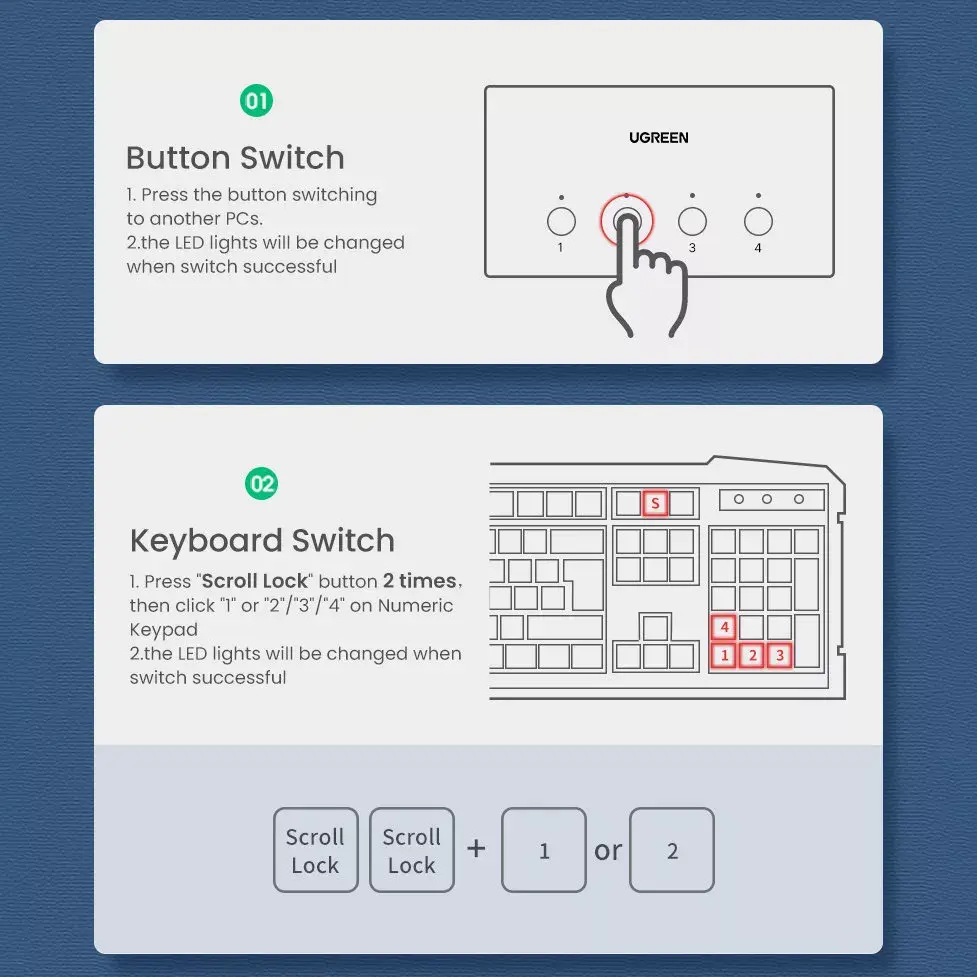

- use the buttons on the housing. Press one of the buttons to switch between computers. The LED will light up if you've successfully switched computers.
- use the keyboard. Press the Scroll Lock button twice followed by a number between 1 and 4 on the numeric keypad. The LED will light up if you've successfully switched computers.
Friendly design The device has four silicone pads glued to the bottom, which prevent it from sliding on the surface of a table, desk or cabinet . The housing has been designed so that it can be exposed to the view.
