header-product Unmanaged Switch PLANET ISW-511
95.49 €

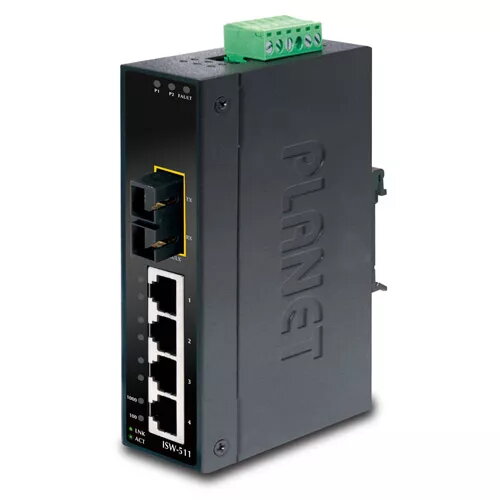

Unmanaged Switch PLANET ISW-511

Unmanaged Switch PLANET ISW-511 Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Unmanaged Switch PLANET ISW-511

{{email}}
You keep track of price changes

Unmanaged Switch PLANET ISW-511

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET ISW-511 is an unmanaged L2 Fast Ethernet switch with 4 RJ-45 ports supporting 10/100 Mbps. It features full duplex communication, a MAC address table with 2048 entries, and a switching capacity of 1 Gbit/s. Compliant with IEEE 802.3 standards, this wall-mountable switch is ideal for small networks requiring reliable and efficient connectivity.
Available for order: 6 pcs.
Warranty: 2 Years
SKU: 125143
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
16.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
21.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.44 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
21.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 31.83 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 2.65 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET ISW-511 is an unmanaged industrial Fast Ethernet switch in a slim IP-30 metal housing designed for space-efficient installations. It provides four 10/100Base-TX auto-negotiation RJ-45 ports and one 100Base-FX multi-mode SC fiber port for up to 2 km (the ISW-511S15 variant uses a single-mode SC fiber port for up to 15 km). The compact case supports DIN-rail or wall mounting and the device operates over a wide DC input range for flexible power configurations.

Advantages

The ISW-511 delivers wire-speed switching with a switching capacity of 1 Gbps and a 2K MAC address table to support stable packet forwarding. It offers high immunity to electromagnetic interference and electrical surges common in industrial and roadside environments, and an extended operating temperature range (-10 to 60 °C). Auto MDI/MDI-X and 10/100 Mbps auto-negotiation simplify connection setup using standard Category cables.

Suitable for

  • Small industrial networks requiring ruggedized, unmanaged switching
  • Factory floors, traffic control cabinets and outdoor enclosures (with suitable protection)
  • Space-constrained cabinets where DIN-rail or wall mounting is preferred

Key specifications

  • Switch type: Unmanaged L2 Fast Ethernet
  • Ports: 4 × 10/100Base-TX RJ-45, 1 × 100Base-FX SC (multi-mode for ISW-511; single-mode for ISW-511S15)
  • Fiber distance: up to 2 km (ISW-511 multi-mode) / up to 15 km (ISW-511S15 single-mode)
  • Switching capacity: 1 Gbps
  • MAC address table: 2048 entries
  • Power input: 12–48 V DC (integrated wide-range power support)
  • Operating temperature: -10 to 60 °C
  • Case: IP-30 metal, DIN-rail or wall mountable
  • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Colour: Black
  • Weight: 0.436 kg

How to use

Mount the ISW-511 on a DIN rail or wall using the included hardware and connect a DC power source within the 12–48 V range. Use standard Cat5/5e/6 cables to connect devices to the RJ-45 ports; the switch supports auto-negotiation and auto MDI/MDI-X so no specific cable type is required. Connect the fiber segment to the SC port according to the chosen model (multi-mode for ISW-511, single-mode for ISW-511S15) and verify link LEDs for active connections. The switch is plug-and-play and requires no configuration for basic Layer 2 switching.

Usage recommendations

Install the switch inside a suitably protected enclosure if deployed outdoors; ensure proper grounding and use surge protection where mains transients or heavy electromagnetic interference are expected. Match the fiber type and transceiver specifications to the ISW-511 or ISW-511S15 model to achieve the stated distance limits.

Specifications

Switch type:
Unmanaged
Basic switching RJ-45 Ethernet ports type:
Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:
4
Weight:
0.436 kg
10G support:
No
Networking standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Product colour:
Black
All features

Design

Rack mounting:
No
LED indicators:
Y
Wall mountable:
Yes
Product colour:
Black
Stackable:
Yes
Housing material:
Metal
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30
DIN rail mounting:
Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
9.1 W
Redundant power supply (RPS) support:
Yes
Power supply included:
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):
No

Management features

Switch layer:
L2
Switch type:
Unmanaged

Ports & interfaces

Fiber ports quantity:
1
Fast Ethernet (copper) ports quantity:
4
Basic switching RJ-45 Ethernet ports type:
Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:
4

Optical fiber

Wavelength:
1300 nm
Fiber type:
Multi-mode
RX sensitivity:
-34.5 dB
Fiber ethernet cabling technology:
100BASE-FX
Transmission distance (max):
2 km

Certificates

Certification:
FCC, CE UL, cUL

Operational conditions

Operating relative humidity (H-H):
5 - 90
Storage temperature (T-T):
-40 - 85
Operating temperature (T-T):
-10 - 60
Storage relative humidity (H-H):
5 - 90
Heat dissipation:
31 BTU/h

Logistics data

Harmonized System (HS) code:
85176990

Weight & dimensions

Weight:
0.436 kg
Height:
32 mm
Width:
135 mm
Depth:
97 mm

Data transmission

MAC address table:
2048 entries
Switching capacity:
1 Gbit/s
Store-and-forward:
Yes
Throughput:
0.74 Mpps

Network

Full duplex:
Yes
Networking standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Flow control support:
Yes
Auto MDI/MDI-X:
Yes
10G support:
No
Copper ethernet cabling technology:
10BASE-T, 100BASE-TX
Auto-negotiation:
Yes
MAC address auto-learning supported:
Yes
MAC address auto-aging supported:
Yes
