header-product Unmanaged Switch PLANET ISW-511TS15
119.99 €

Unmanaged Switch PLANET ISW-511TS15

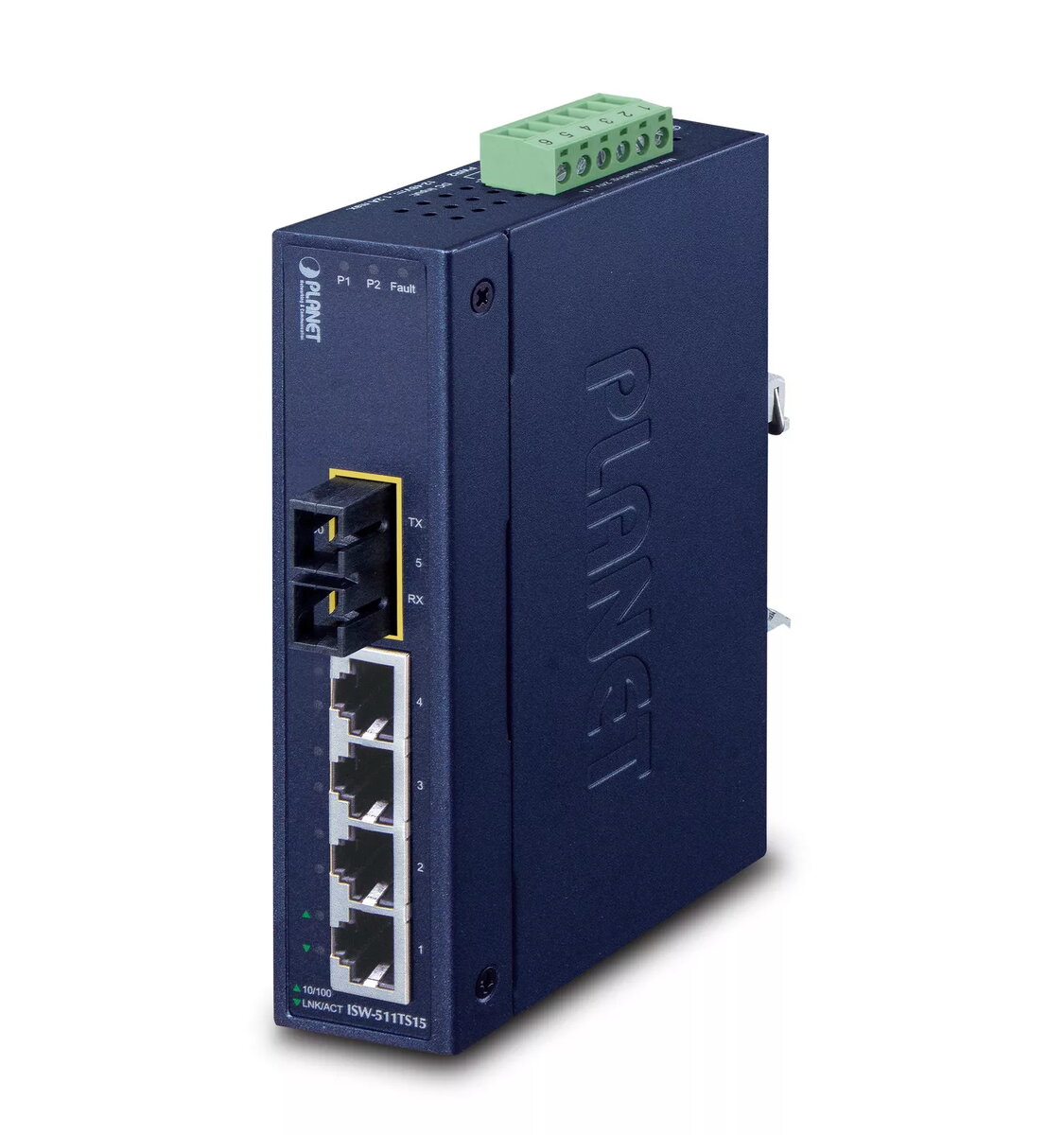

Unmanaged Switch PLANET ISW-511TS15 Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Unmanaged Switch PLANET ISW-511TS15

{{email}}
You keep track of price changes

Unmanaged Switch PLANET ISW-511TS15

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET ISW-511TS15 is an unmanaged L2 Fast Ethernet switch with 4 RJ-45 ports (10/100 Mbps). It features full duplex operation, a MAC address table with 2048 entries, and a switching capacity of 1 Gbit/s. Compliant with IEEE 802.3 standards, this switch is wall mountable, making it a versatile choice for network expansion.
Available at price 119.99 €: 8 pcs.
Total available for order: 11 pcs.
Warranty: 2 Years
SKU: 125146
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
23.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
28.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.61 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
28.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 137.99 €: 3 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET ISW-511TS15 is an unmanaged industrial Fast Ethernet switch designed for wide-temperature operation and reliable data transmission in harsh environments. It includes four 10/100Base-TX auto-negotiation RJ-45 ports and one 100Base-FX single-mode SC fiber port for up to 15 km transmission. The switch offers electromagnetic interference immunity, surge protection, and a compact housing that supports DIN-rail or panel mounting, making it suitable for transportation, manufacturing, security and outdoor network deployments.

Advantages

The ISW-511TS15 supports extended operating temperatures from -40 to 75 °C and delivers resilience against electrical surges and electromagnetic interference commonly found on plant floors and in traffic control cabinets. It provides a 100Base-FX single-mode link for long-distance fiber connectivity up to 15 km, a 4-port 10/100 Mbps copper interface for local devices, a MAC address table and hardware switching capacity for deterministic Layer 2 forwarding, and flexible mounting options with an integrated wide-range DC power input and dual-redundant, polarity-reversible power terminals for high availability.

Suitable for

  • Transportation networks (rail, road-side cabinets)
  • Industrial automation and manufacturing floor networks
  • Security and surveillance camera systems requiring long-distance fiber links
  • Outdoor or unheated enclosures where wide temperature range is required

Key specifications

  • Model: PLANET ISW-511TS15
  • Switch type: Unmanaged Fast Ethernet switch
  • Ports: 4 × 10/100Base-TX (RJ-45), 1 × 100Base-FX single-mode SC (up to 15 km)
  • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Switching capacity: 1 Gbit/s
  • MAC address table: 2048 entries
  • Operating temperature: -40 to 75 °C
  • Power: Wide-range DC input, dual-redundant reversible polarity 12–48V DC inputs
  • Mounting: DIN-rail or panel mount
  • Colour: Blue
  • Weight: 0.436 kg

How to use

Install the ISW-511TS15 in a suitable cabinet or mount it on a DIN rail or panel. Connect up to four copper Ethernet devices to the RJ-45 10/100Base-TX ports and connect the long-distance fiber link to the 100Base-FX single-mode SC port using appropriate single-mode fiber cable and connectors. Supply power via the DC power terminals, observing polarity guidelines; the unit accepts a wide DC voltage range and supports dual-redundant power inputs. The switch is unmanaged and operates plug-and-play without configuration.

Usage recommendations

Use single-mode fiber with correct connectors and appropriate transceivers for the 100Base-FX SC port to achieve reliable 15 km transmission; install the switch in a location protected from direct water ingress and ensure power redundancy if deployed in critical applications.

Specifications

Switch type:
Unmanaged
Basic switching RJ-45 Ethernet ports type:
Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:
4
Weight:
0.436 kg
10G support:
No
Networking standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Product colour:
Blue
All features

Design

Rack mounting:
No
LED indicators:
Y
Wall mountable:
Yes
Product colour:
Blue
Stackable:
Yes
Housing material:
Metal
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30
DIN rail mounting:
Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
13.7 W
Redundant power supply (RPS) support:
Yes
Power supply included:
No

Power over Ethernet (PoE)

Power over Ethernet (PoE):
No

Other features

Terminal block port:
Yes

Management features

Switch layer:
L2
Switch type:
Unmanaged

Ports & interfaces

Fiber ports quantity:
1
Fast Ethernet (copper) ports quantity:
4
Basic switching RJ-45 Ethernet ports type:
Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:
4

Optical fiber

Wavelength:
1310 nm
Fiber type:
Single-mode
RX sensitivity:
-32 dB
Fiber ethernet cabling technology:
100BASE-FX
Transmission distance (max):
15 km

Certificates

Certification:
FCC, CE

Operational conditions

Operating relative humidity (H-H):
5 - 90
Storage temperature (T-T):
-40 - 85
Operating temperature (T-T):
-40 - 75
Storage relative humidity (H-H):
5 - 90
Heat dissipation:
46 BTU/h

Logistics data

Harmonized System (HS) code:
85176990

Weight & dimensions

Weight:
0.436 kg
Height:
32 mm
Width:
135 mm
Depth:
97 mm

Data transmission

MAC address table:
2048 entries
Switching capacity:
1 Gbit/s
Store-and-forward:
Yes
Throughput:
0.74 Mpps

Network

Full duplex:
Yes
Networking standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Flow control support:
Yes
Auto MDI/MDI-X:
Yes
10G support:
No
Copper ethernet cabling technology:
100BASE-TX, 10BASE-T
Auto-negotiation:
Yes
MAC address auto-learning supported:
Yes
MAC address auto-aging supported:
Yes
