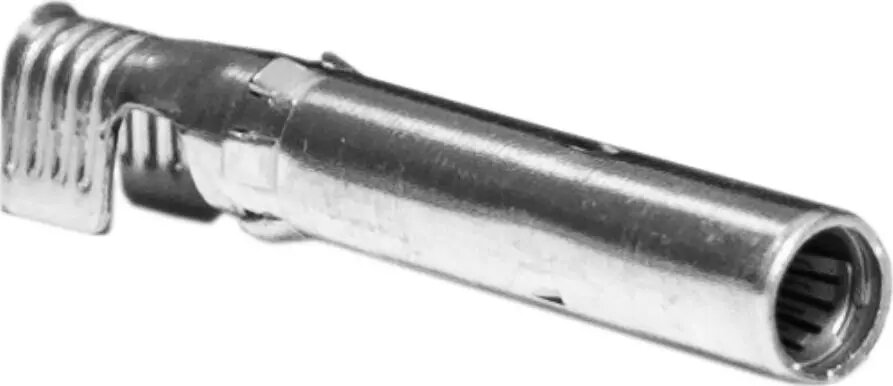

Weidmüller PV WM4 C BT Female Contact for MC4 Connectors 1530670000

The Weidmüller PV WM4 C BT female contact is a precision-engineered component designed specifically for integration with MC4 photovoltaic connectors. This high-quality contact ensures a robust and reliable electrical connection within solar power systems, facilitating efficient energy transmission from solar panels to the inverter. Built to withstand the rigorous demands of outdoor environments, this component provides long-term stability and consistent performance for professional solar energy installations.

Advantages

This female contact offers exceptional durability and resistance to environmental factors, which is critical for maintaining the integrity of solar power systems over many years. Its design ensures a secure and low-resistance connection, minimizing power loss and preventing overheating at the contact point. The component is fully compatible with standard MC4 cabling systems, allowing for seamless integration into existing solar infrastructure without the need for specialized tools beyond standard crimping equipment.

Suitable for

• Professional solar power plant installations
• Residential rooftop solar panel wiring
• Maintenance and repair of existing MC4-based PV systems
• Connection of photovoltaic modules to string cables

When it may not be suitable

This contact is specifically designed for use with MC4-compatible connectors and may not be suitable for non-standard or proprietary solar connector systems. It is not intended for use in high-voltage industrial applications outside of standard photovoltaic system parameters.

Key specifications

• Type: Female contact
• Compatibility: MC4 connector systems
• Material: High-conductivity copper alloy
• Application: Photovoltaic cabling

How to use

To install the contact, strip the insulation from the solar cable to the recommended length. Insert the conductor into the crimping area of the contact and use a professional-grade crimping tool designed for MC4 contacts to ensure a gas-tight connection. Once crimped, insert the contact into the MC4 connector housing until it clicks into place, ensuring the locking mechanism is fully engaged to prevent accidental disconnection.

What to consider before purchase

• Ensure compatibility with your specific cable cross-section
• Verify that you have the appropriate crimping tool for MC4 contacts
• Check the quantity required for your specific installation project

Usage recommendations

Always perform a pull test after crimping to ensure the cable is securely attached to the contact. Ensure that the final assembly is protected from moisture and debris by using the correct seals and cable glands provided with the connector housing.
