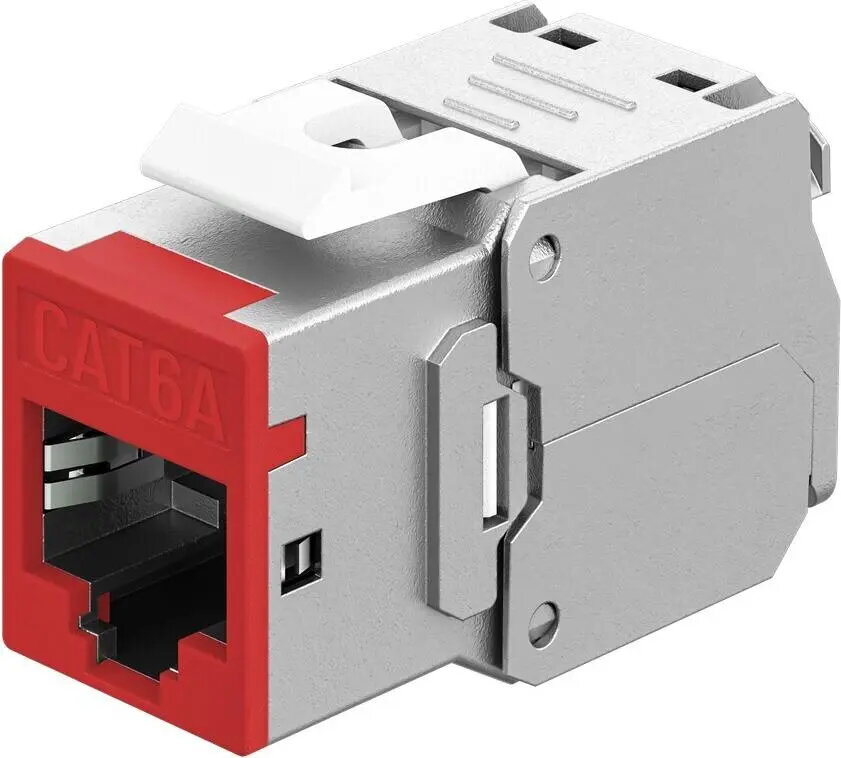

Keystone module RJ45 CAT 6A STP Slim red – WENTRONIC 77948

The WENTRONIC Keystone module RJ45 CAT 6A STP Slim in red is a slim, shielded network connector designed for installation in keystone wall plates and patch panels. It provides CAT 6A performance for high-speed Ethernet applications, supporting Gigabit and 10 Gigabit links over twisted-pair cabling while using STP shielding to reduce electromagnetic interference. The slim form factor allows denser mounting in installations where space is limited, and the module uses a standard keystone snap-in design for straightforward replacement or upgrades.

Advantages

This keystone module combines CAT 6A performance with STP shielding to ensure stable high-speed data transmission and improved immunity to external interference. Its slim profile enables space-saving placement in crowded wall plates or high-density patch panels without compromising connector performance. The red color provides quick visual identification of the terminated port and can help organize different networks or services. The standard keystone snap-in mounting offers compatibility with common faceplates and panels and simplifies installation and maintenance.

Suitable for

• Office and data center horizontal cabling for Gigabit and 10 Gigabit Ethernet
• Patch panels and keystone faceplates in multiport wall outlets
• Environments where electromagnetic interference is a concern and shielded connections are preferred
• Installations requiring increased port density or space-saving connector solutions

When it may not be suitable

This module is intended for shielded twisted-pair networks; it is not suitable for use in unshielded cabling systems without proper grounding and bonding practices. In cases where only single-link Gigabit (CAT 5e/6) performance is required or where shielding is unnecessary, an unshielded or lower-category module may be a simpler and more economical choice.

Key specifications

• Cable category: CAT 6A performance for 10GBASE-T links
• Shielding: STP (shielded twisted pair) connector housing
• Form factor: Slim keystone module for standard snap-in mounting
• Connector: RJ45 female keystone interface
• Color: Red for visual identification

How to use

Install the keystone module into a compatible keystone wall plate or patch panel by pressing the module into the appropriate opening until it snaps into place. Terminate the network cable to the module following the color-coded wiring scheme on the module (T568A or T568B) and ensure the shielding is properly connected to the metal housing and to the system grounding point. After termination, test the link with appropriate cable testers to verify pair continuity and performance up to CAT 6A specification.

What to consider before purchase

• Compatibility with your faceplate or patch panel keystone openings (standard keystone size)
• Whether your cabling infrastructure is shielded and if proper grounding is available
• Required performance level (CAT 6A for 10G vs lower categories for less demanding needs)
• Color-coding scheme for your installation and whether red fits your labeling plan

Usage recommendations

For reliable CAT 6A performance, use this STP module with shielded CAT 6A cables and ensure continuous shielding continuity to a common grounding point. After installation, perform certification or verification tests to confirm 10G link capability and to detect any wiring or shielding faults.
