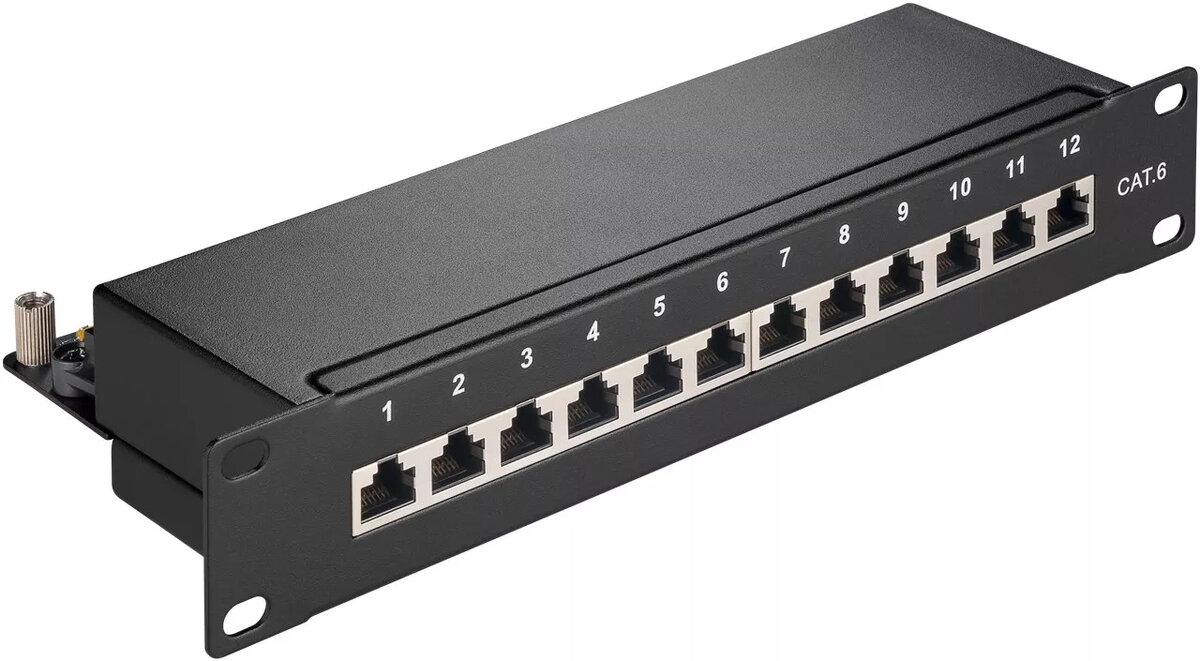

Goobay CAT 6 10-Inch Patch Panel 12-Port RJ-45 S/UTP Black 1U Rack Mounting

The Goobay CAT 6 10-Inch Patch Panel 12-Port RJ-45 S/UTP Black 1U Rack Mounting is designed for reliable network organization and structured cabling in rack enclosures. Featuring 12 ports with RJ-45 connectors, this network panel supports Cat6 and S/UTP cable types with AWG wire size 22 to 26, occupying 1U of rack space. It ensures stable data transmission and professional cable management for small server rooms and home networks.

Advantages

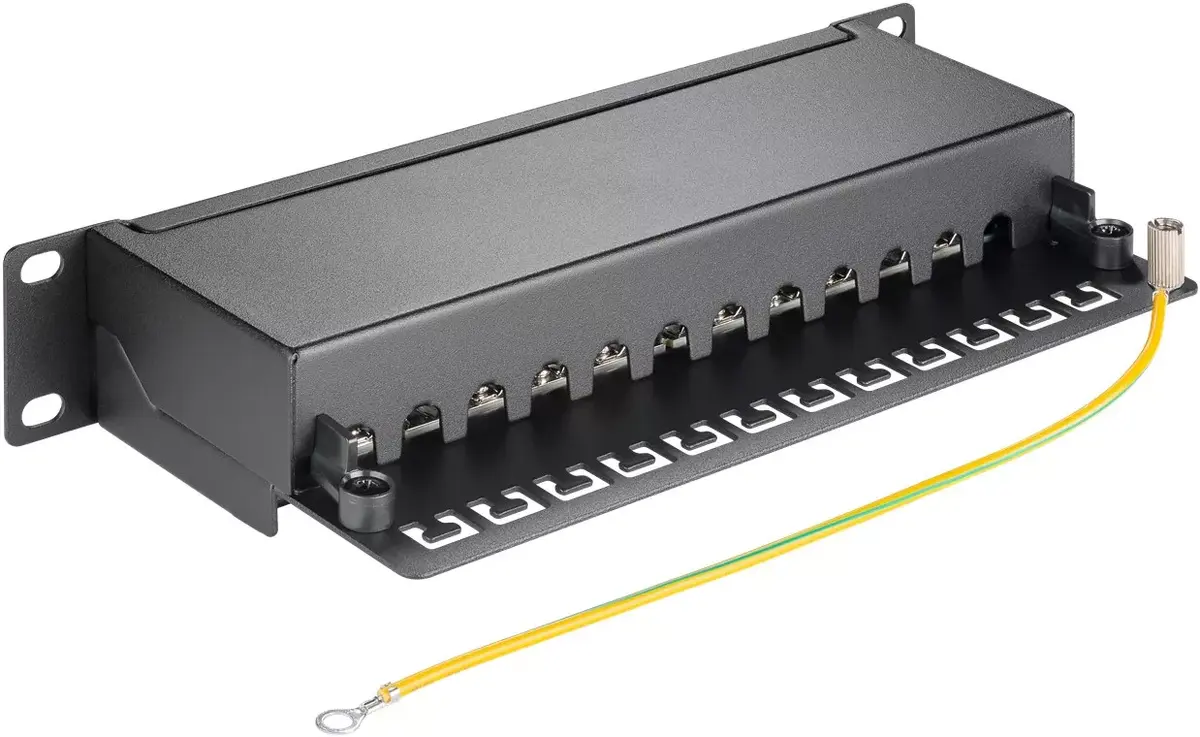

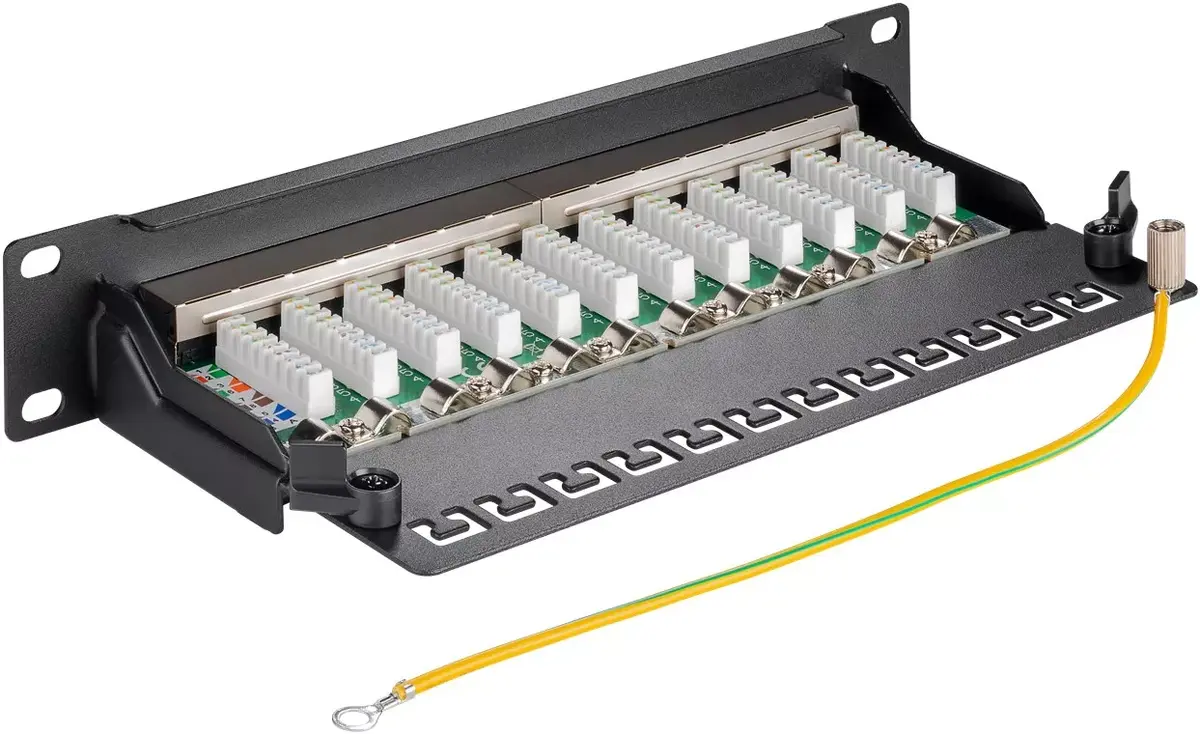

This patch panel features a robust metal housing with shielded slots for excellent connections and stable data transmission. The tool-free assembly utilizes solderless, screwless, and stripping-free IDC mounting technology for efficient installation. Numbered ports and terminal strips with TIA 568 A/B color coding enable clean cable management and correct connections. The design includes an Easy Open function allowing the metal housing to be opened without screws and tools, simplifying maintenance tasks.

Suitable for

• Small server rooms requiring structured cabling
• Home networks for organizing Ethernet cables
• Rack enclosures and 10-inch server cabinets
• Connecting terminated CAT 6 network cables

When it may not be suitable

This patch panel may not be suitable for large enterprise data centers that require high-density 19-inch rack installations with 24 or 48 ports. It is also not designed for unshielded UTP setups if strict S/UTP shielding requirements are not met, or for environments requiring non-standard wire gauges outside the AWG 22 to 26 range.

Key specifications

• 12-port patch panel with RJ-45 sockets
• Cat6 cable support with S/UTP shielding
• AWG wire size 22 to 26
• 1U rack mounting height for 10-inch (25.4 cm) server cabinets
• Black metal housing with tool-free IDC mounting and TIA 568 A/B color coding
• Dimensions: width 258 mm, height 44 mm, depth 108 mm

How to use

To use the patch panel, securely mount it into a 10-inch rack enclosure using the included fixing screws. Open the metal housing using the tool-free Easy Open function if internal access is required. Connect your network cables to the terminal strips by following the TIA 568 A/B color coding for correct placement, utilizing the IDC mounting technology without the need for stripping or soldering. Ensure that cable diameters fall within the supported AWG 22 to 26 range for secure termination.

What to consider before purchase

• Verify that your server rack or enclosure is compatible with 10-inch (25.4 cm) equipment and 1U space availability
• Check that your network infrastructure utilizes Cat6 S/UTP cables with wire sizes between AWG 22 and 26
• Confirm the port count of 12 meets your current and immediate network connection requirements

Usage recommendations

Ensure proper cable routing and strain relief inside the rack enclosure to maintain the integrity of the shielded connections and prevent physical stress on the patch panel ports.
