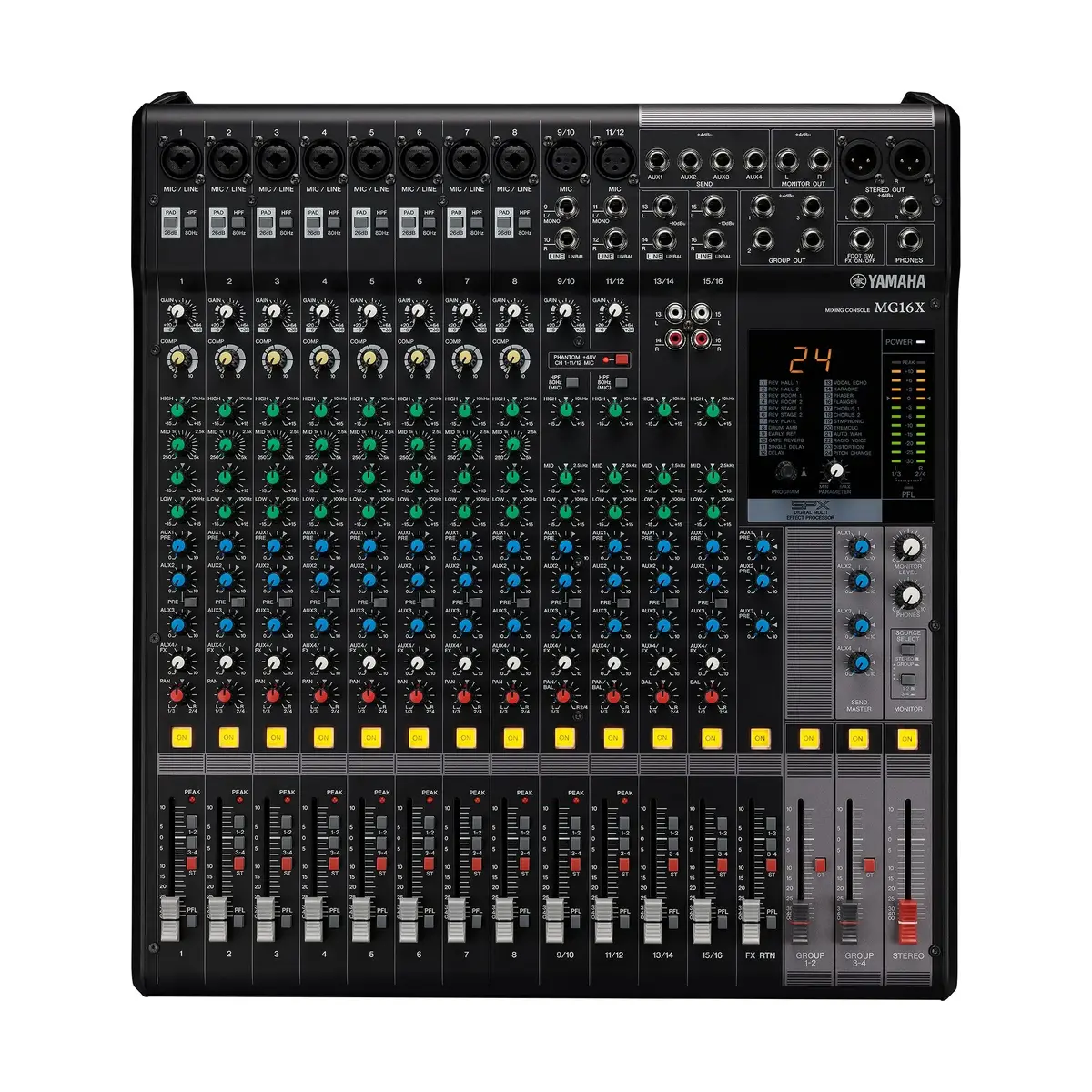

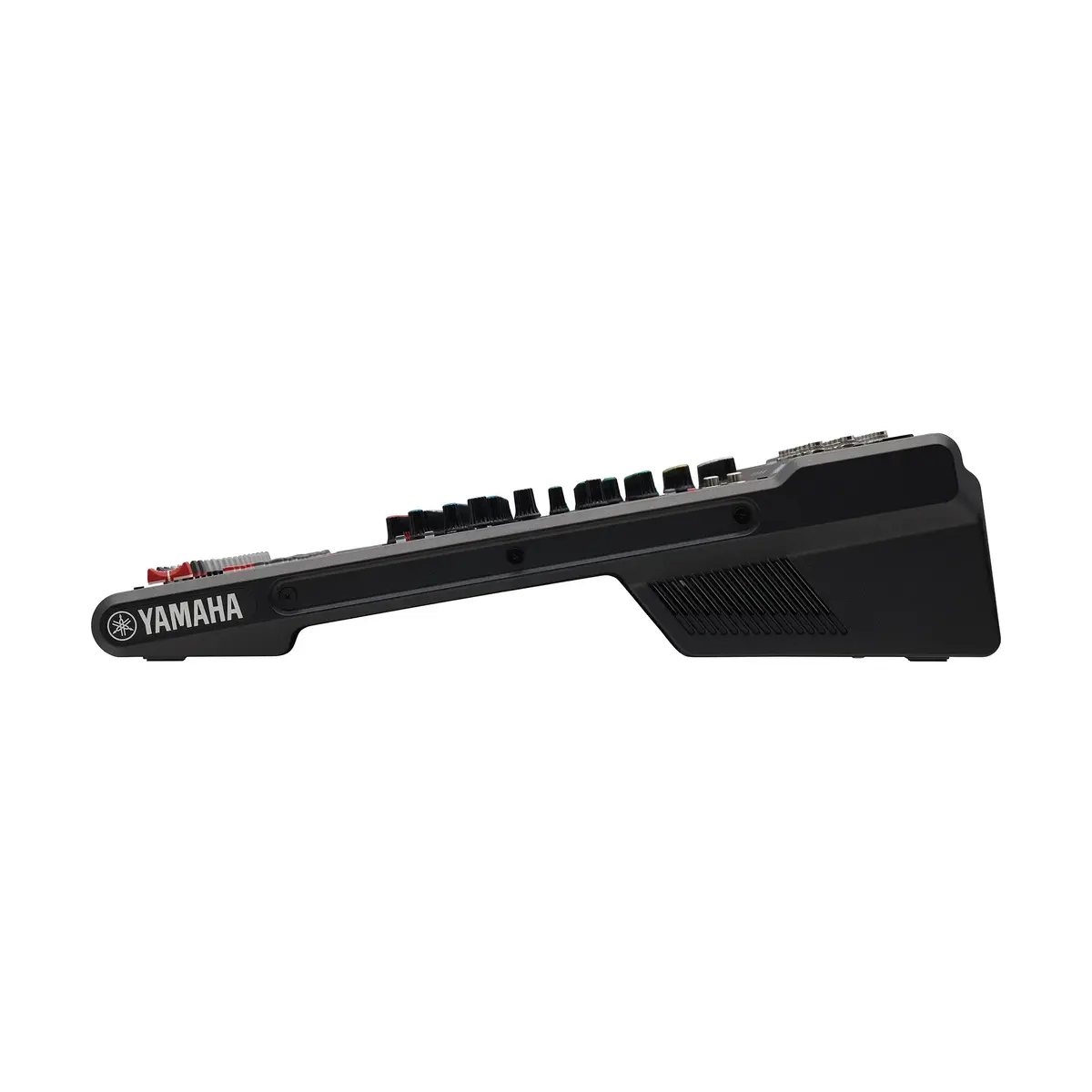

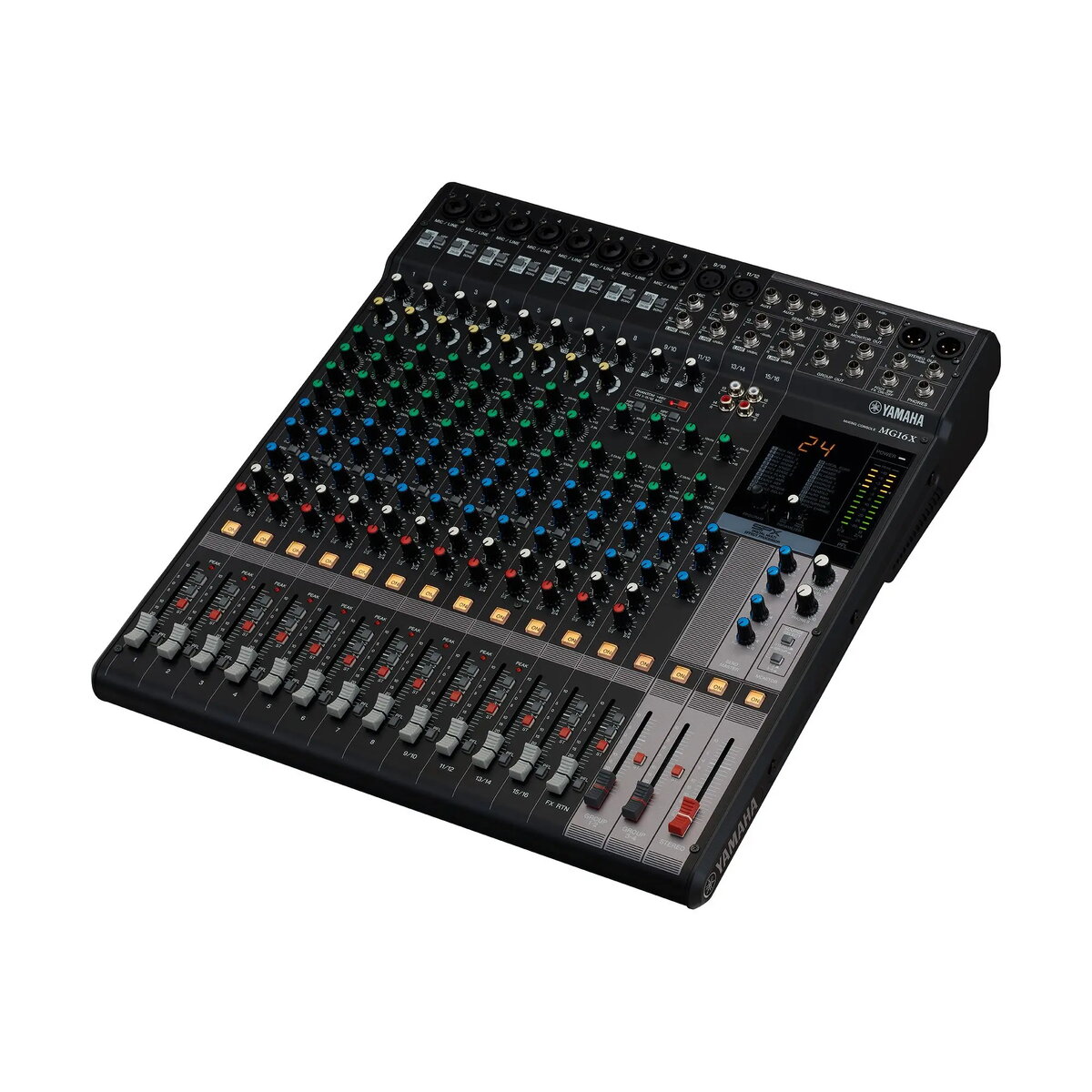

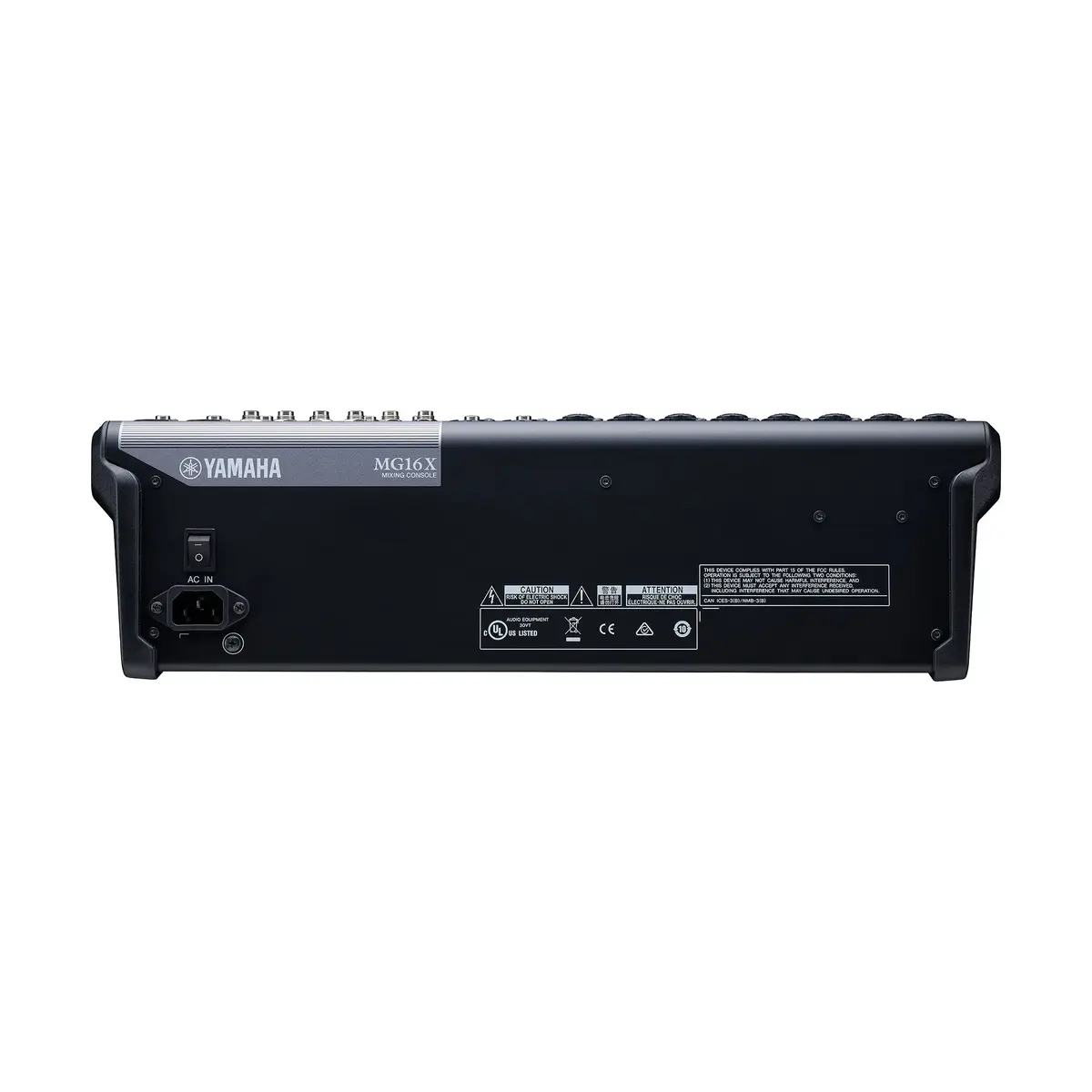

Yamaha MG16X 16-Channel Analog Mixing Console with Built-in Effects

The Yamaha MG16X is a professional 16-channel analog mixing console engineered for live sound reinforcement and studio recording applications. It combines Yamaha's renowned craftsmanship with high-quality D-PRE discrete Class-A microphone preamps, ensuring a transparent and natural sound. With its rugged, powder-coated metal chassis and intuitive interface, this mixer provides reliable performance for musicians, sound engineers, and small venue installations.

Advantages

The MG16X stands out due to its exceptional sonic purity, achieved through custom-made MG01 op-amps and high-performance preamps that minimize distortion. The inclusion of 1-knob compressors allows for quick and effective dynamic control, making it easier to achieve a professional mix without complex outboard gear. Its built-in SPX digital effects processor offers 24 versatile programs, adding depth and atmosphere to any performance. Furthermore, the internal universal power supply ensures consistent operation worldwide, while the durable metal construction protects the internal circuitry from the rigors of frequent transport and demanding environments.

Suitable for

• Live music performances and band mixing
• Small to medium-sized venue sound reinforcement
• Studio recording and home production setups
• Corporate events and speaking engagements
• Podcast production and streaming

This console may not be suitable for large-scale stadium tours or complex broadcast productions that require hundreds of channels or advanced digital networking capabilities like Dante. Additionally, users looking for a purely digital workflow with extensive software-based automation might find a dedicated digital console more appropriate for their specific needs.

Key specifications

• 16-channel mixing capacity
• 10 microphone inputs and 16 line inputs
• D-PRE discrete Class-A microphone preamps
• Built-in SPX digital effects with 24 programs
• 1-knob compressors on mono channels
• +48V phantom power for condenser microphones
• Balanced XLR stereo outputs
• 3-band EQ on all mono channels
• High-pass filters for noise reduction
• 6.3 mm headphone output

To begin using the Yamaha MG16X, connect your microphones or instruments to the appropriate input channels using XLR or 6.3 mm cables. Engage the +48V phantom power if you are using condenser microphones. Adjust the gain for each channel to ensure a strong signal without clipping, then use the faders to balance your mix. You can apply the 1-knob compression to vocals or bass to tighten the sound and select one of the 24 SPX effects to add reverb or delay as needed. Route your final mix to the main stereo outputs or use the group buses for sub-mixing.

What to consider before purchase

• Ensure you have enough channels for your specific setup requirements
• Verify that your microphones require phantom power
• Check if your rack space is compatible with the included rack mount kit
• Consider the need for external monitoring systems

Usage recommendations: Always ensure the mixer is placed on a stable, flat surface or securely rack-mounted to prevent accidental damage. When transporting the unit, use a padded case to protect the knobs and chassis. Regularly clean the faders and knobs with compressed air to prevent dust buildup, and always power down the unit before connecting or disconnecting cables to protect your speakers and equipment.
