header-product Socket-outlet METZ CONNECT 1309426003-E Grey
25.99 €

Socket-outlet METZ CONNECT 1309426003-E Grey

Socket-outlet METZ CONNECT 1309426003-E Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Socket-outlet METZ CONNECT 1309426003-E Grey

{{email}}
You keep track of price changes

Socket-outlet METZ CONNECT 1309426003-E Grey

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The METZ CONNECT 1309426003-E socket-outlet features a sleek grey design and is made from durable zinc housing. With dimensions of 17.5 mm in width, 60 mm in depth, and 52.2 mm in height, it is compact yet robust. This socket-outlet is ideal for various applications, providing reliable connectivity and ease of installation.
Available for order: 2382 pcs.
Warranty: 2 Years
SKU: 1590248
Manufacturer: BTR
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
28.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
31.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.13 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
31.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

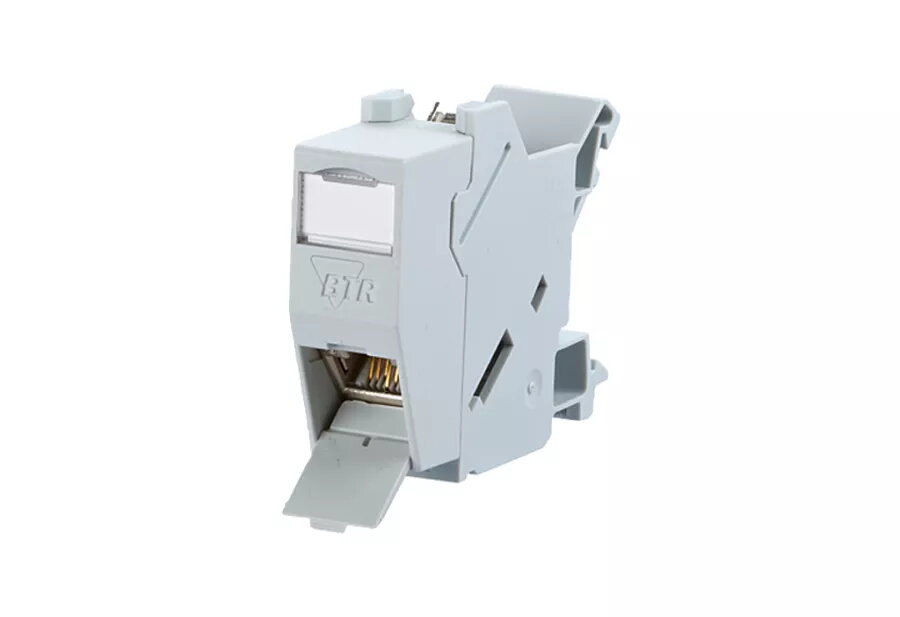

The METZ CONNECT 1309426003-E Grey socket-outlet is a termination unit designed for mounting on TH35 rails to DIN EN 60715 in electrical distribution panels for residential and industrial installations. It features an individual E-DAT RJ45 module with a 45° cable entry from the top and a 45° plug direction downward. The unit is housed in a zinc casing, measures 17.5 mm (1 HP) in width, 60 mm in depth and 52.2 mm in height, and includes an integrated dust protection cover.

Advantages

The socket complies with class EA to ISO/IEC 11801 Ed.2.2:2011-06 and DIN EN 50173-1:2011-09 and has been tested for link performance up to 500 MHz, supporting 10 GBit Ethernet (IEEE 802.3an). It is suitable for Power over Ethernet (PoE, PoE+ and UPoE) and allows easy installation of 2 to 4 pair data lines using BTR 8-fold insulation displacement connectors (IDC). Marking for conductor assignment supports T568A or T568B wiring, and the E-DAT module stuffer cap enables fast insertion of wire pairs. The 1 HP width permits mounting up to 12 units in standard distribution panels. When mounted as a protection class I device, equipotential bonding is realized via an integrated equipotential plate connected to the building bonding terminal; when installed in panels with protective insulation, protection class II is achieved by removing the equipotential bonding spring.

Suitable for

  • Structured cabling terminations in residential distribution panels
  • Network outlets in industrial electrical distribution panels
  • 10 GBit Ethernet installations requiring Class EA performance
  • Installations requiring Power over Ethernet (PoE, PoE+, UPoE)

Key specifications

  • Brand: BTR (METZ CONNECT 1309426003-E)
  • Mounting: TH35 rail to DIN EN 60715
  • Connector: E-DAT RJ45 module, 45° cable entry top, 45° plug direction down
  • Performance: Class EA to ISO/IEC 11801 Ed.2.2 and DIN EN 50173-1; tested Link up to 500 MHz
  • Ethernet: 10 GBit Ethernet (IEEE 802.3an)
  • PoE: Compatible with PoE, PoE+ and UPoE
  • Wiring: 2–4 pair data lines, AWG 26/1 – 22/1 and stranded AWG 26/7 supported via BTR 8-fold IDC
  • Wiring standard: T568A or T568B marking
  • Dimensions: Width 17.5 mm (1 HP), Depth 60 mm, Height 52.2 mm
  • Housing: Zinc; integrated dust protection cover (colored options)

How to use

Mount the unit on a TH35 top hat rail in the electrical distribution panel according to DIN EN 60715. Prepare and insert the data conductors into the BTR 8-fold insulation displacement connectors following the T568A or T568B assignment marked on the module. Use the E-DAT module stuffer cap to press the wire pairs into the IDC for a secure connection. For equipotential bonding when the device is used as protection class I, connect the integrated equipotential plate to the building equipotential bonding via the bonding terminal. If installed in a distributor panel with protective insulation, remove the equipotential bonding spring to obtain protection class II.

Usage recommendations

Install and commission the device according to local installation rules and standards; verify cable type and conductor sizes (AWG 26/1–22/1 or AWG 26/7 stranded) are compatible with the IDC before termination. Ensure equipotential bonding is correctly implemented based on the chosen protection class.

Specifications

Product colour:
Grey
All features

Weight & dimensions

Height:
52.2 mm
Width:
17.5 mm
Depth:
60 mm

Design

Product colour:
Grey
Housing material:
Zinc

Description
