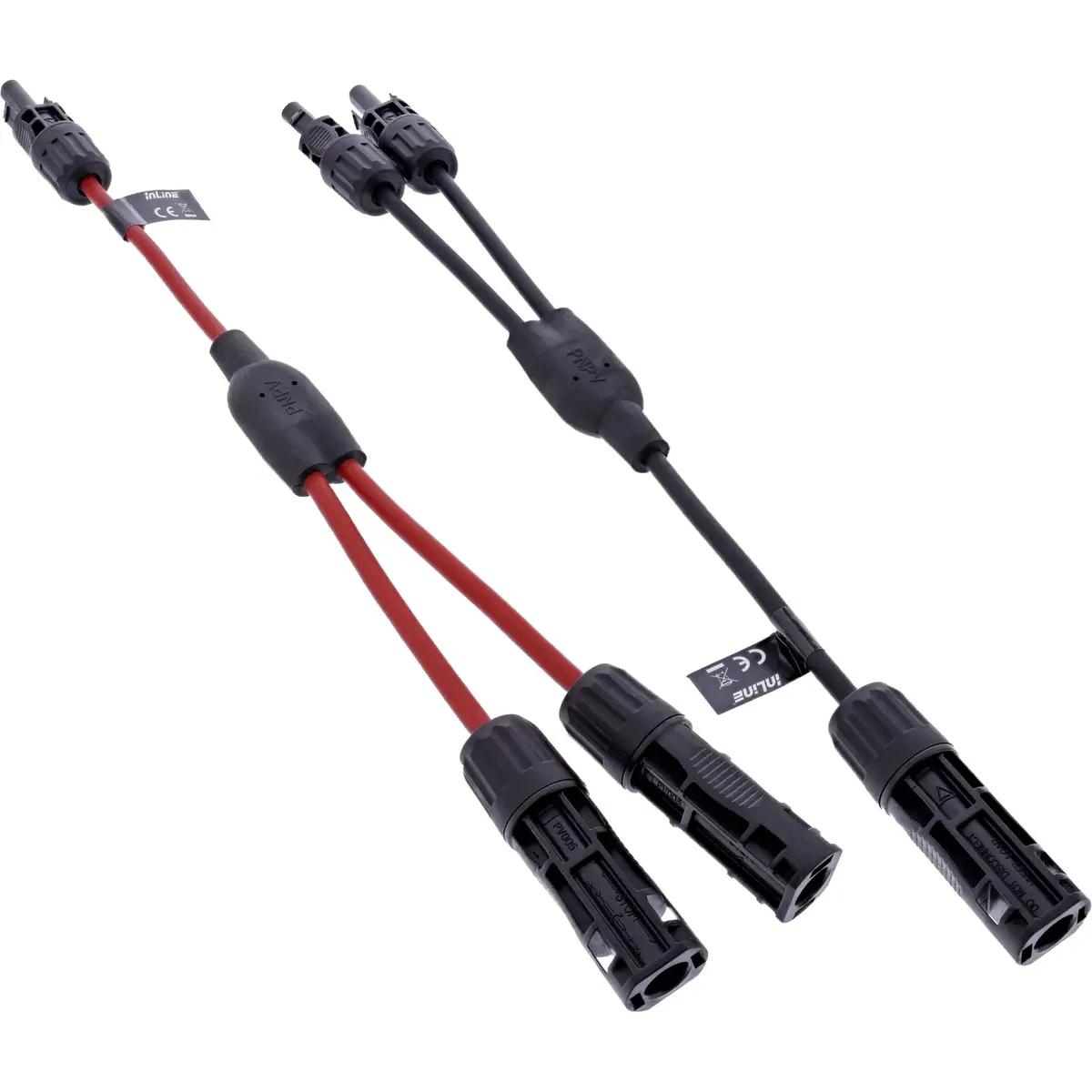

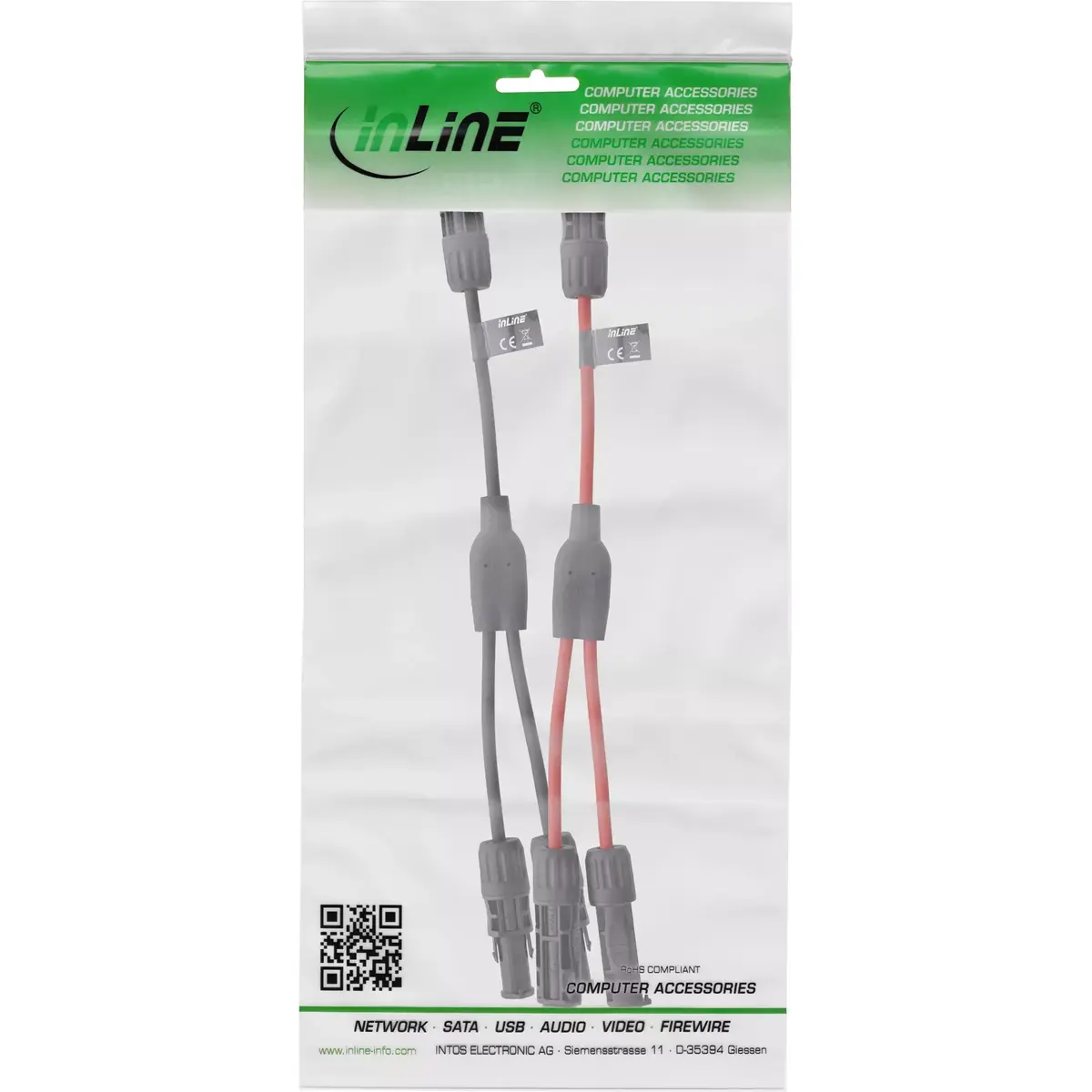

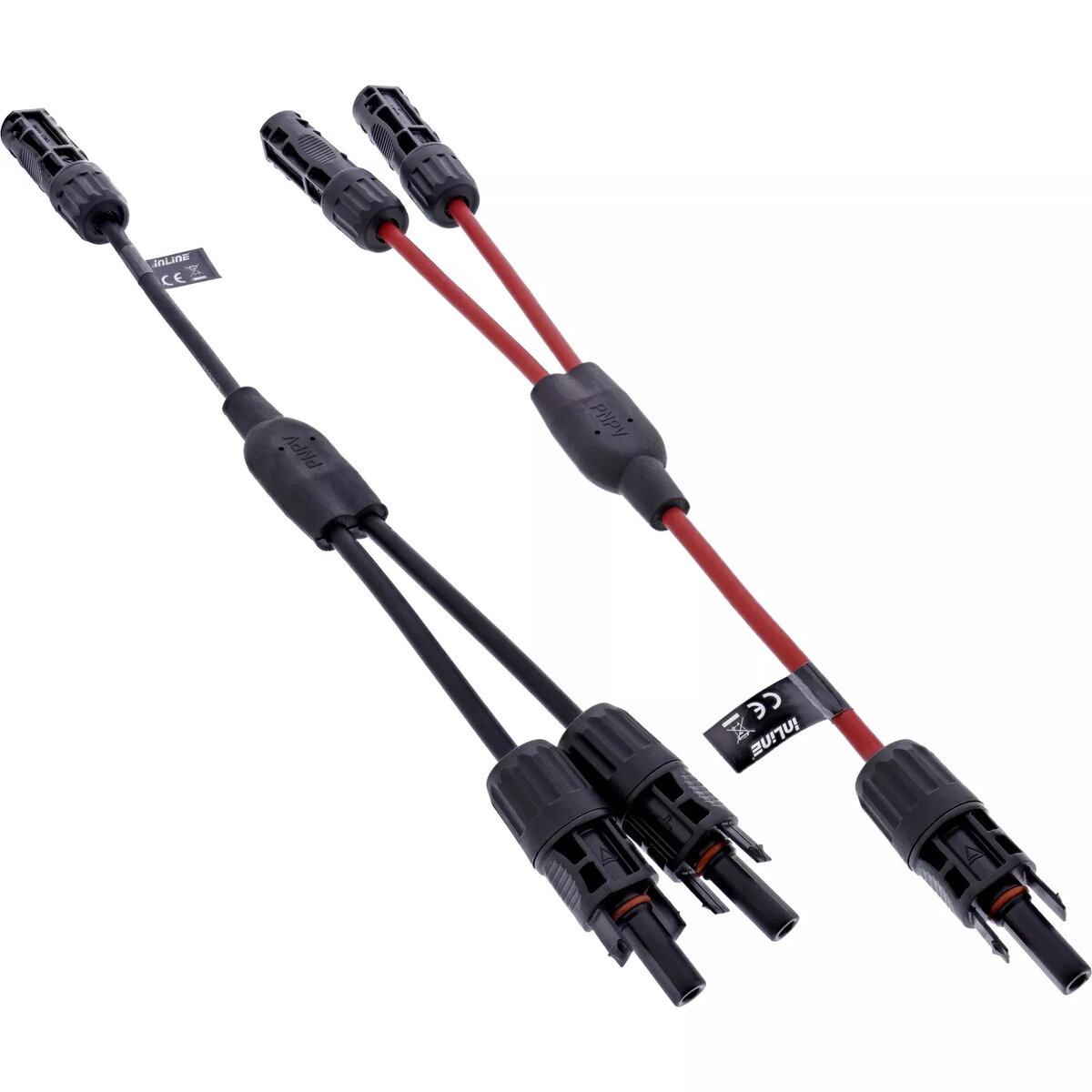

InLine 95020 Solar Cable Set 4 mm² 0.36 m Black Red

The InLine 95020 solar cable set 4 mm² 0.36 m black red is a specialized cable set designed for photovoltaic system connections. It includes black and red cables for clear polarity distinction and features a conductor cross section of 4 mm² with a length of 0.36 m, making it ideal for efficient and reliable solar panel wiring and distributing cable paths to corresponding solar modules.

Advantages

This high-quality solar cable Y-splitter set utilizes reliable H1Z2Z2-K type cables that provide a nominal voltage of 1500V DC and a nominal current of 30A. When plugged in, the assembly achieves an IP68 degree of protection against dust and moisture. The materials are UV resistant and capable of operating across a wide temperature range from -40°C to +85°C. Furthermore, the inclusion of dust protection caps and MC4-compatible solar plug standards ensures secure and protected connections for photovoltaic applications.

Suitable for

• Connecting photovoltaic systems and solar panels
• Distributing cable paths to corresponding solar modules using Y-splitters
• Outdoor solar installations requiring UV-resistant wiring

When it may not be suitable

This cable set may not be suitable for applications requiring cable lengths significantly longer than 0.36 meters or for electrical systems operating outside of the specified 1500V DC and 30A parameters.

Key specifications

• Conductor cross section: 4 mm²
• Cable type: H1Z2Z2-K
• Length: 0.36 m
• Diameter: 5.5 mm
• Nominal voltage: 1500V DC
• Nominal current: 30A
• Degree of protection: IP68 when plugged in
• Temperature range: -40°C to +85°C
• UV resistant: Yes
• Compatibility: Standard4, MC4, and PV4 compatible solar plugs

How to use

To use the InLine solar cable set, ensure the photovoltaic system is completely powered off before installation. Match the black and red cables to their correct polarity designations within your solar panel array. Connect the solar plugs firmly until fully engaged to achieve the IP68 protective seal. Utilize the provided dust protection caps on any unused or temporarily open connection points to maintain system integrity.

What to consider before purchase

• Verify that the 0.36 meter length is sufficient for your specific module spacing
• Check that your system voltage and current do not exceed 1500V DC and 30A
• Confirm compatibility with your existing MC4 or Standard4 solar connectors

Usage recommendations: Always inspect the cables and plug connections for any signs of wear or environmental damage during routine solar system maintenance. Ensure that cables are routed securely to prevent undue mechanical strain on the connection points.
