header-product RF Elements HG3-CC-S70 Horn Antenna, 11.5 dBi, 5.18-6.4 GHz, N-type Female
40.99 €

RF Elements HG3-CC-S70 Horn Antenna, 11.5 dBi, 5.18-6.4 GHz, N-type Female

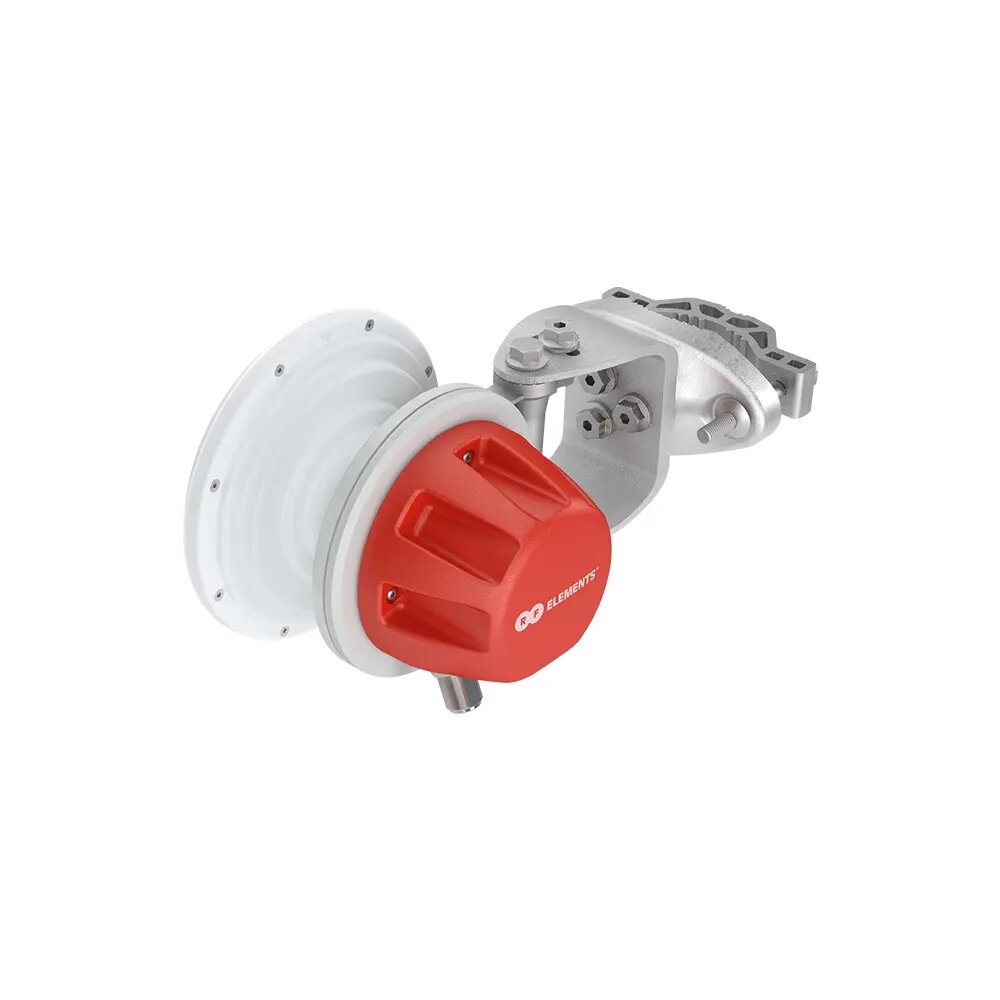

RF Elements HG3-CC-S70 Horn Antenna Photo 1

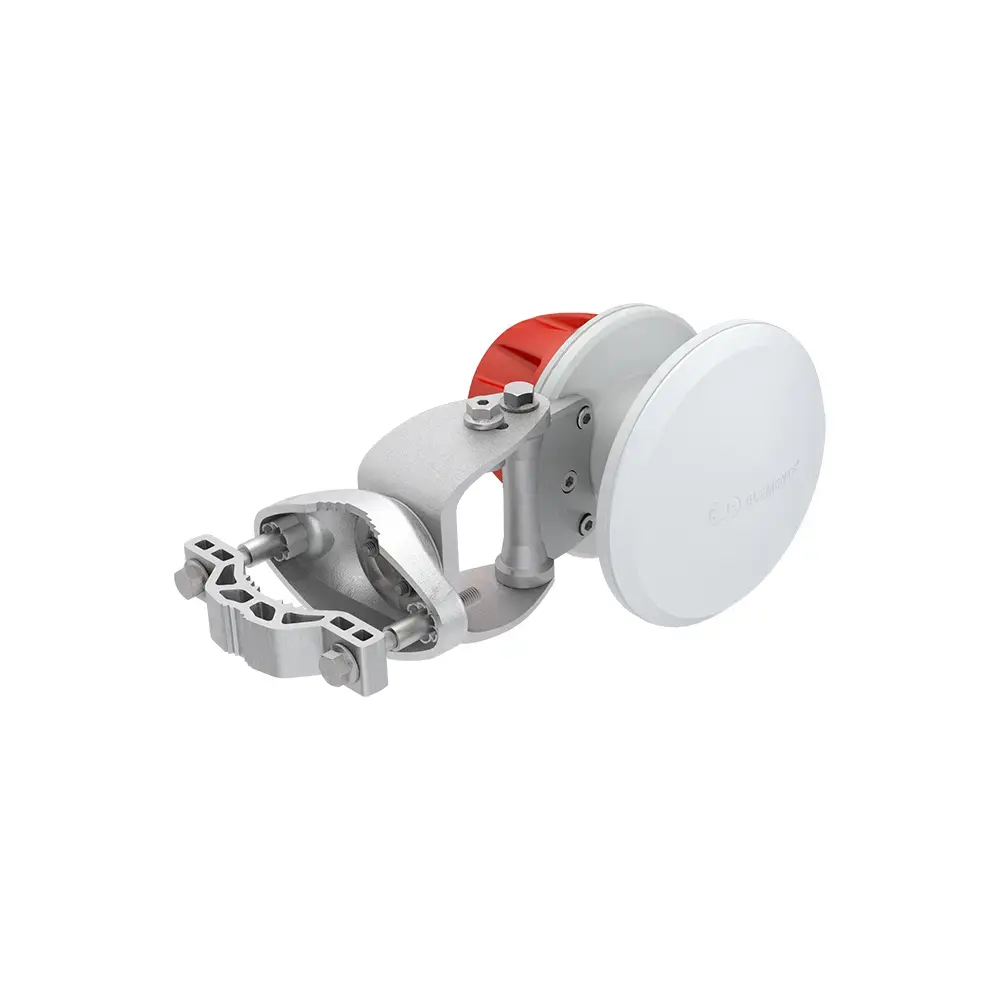

RF Elements HG3-CC-S70 Horn Antenna Photo 2
RF Elements HG3-CC-S70 Horn Antenna Photo 1
RF Elements HG3-CC-S70 Horn Antenna Photo 2
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

RF Elements HG3-CC-S70 Horn Antenna, 11.5 dBi, 5.18-6.4 GHz, N-type Female

{{email}}
You keep track of price changes

RF Elements HG3-CC-S70 Horn Antenna, 11.5 dBi, 5.18-6.4 GHz, N-type Female

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The RF Elements HG3-CC-S70 is a high-performance horn antenna designed for wireless network applications. It operates in the 5.18 - 6.4 GHz frequency range with a maximum gain of 11.5 dBi. Featuring a 50 Ω impedance and an N-type female connector, this antenna provides stable signal distribution and reliable connectivity for professional networking setups.
Available at price 40.99 €: 7 pcs.
Total available for order: 16 pcs.
Warranty: 2 Years
SKU: 11436762
Manufacturer: rf elements
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
15.09.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
18.09.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 2.74 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
18.09.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The RF Elements HG3-CC-S70 is a high-performance symmetrical horn antenna designed for professional wireless network applications. Operating within the 5.18 to 6.4 GHz frequency range, this antenna provides a stable gain of 11.5 dBi. Its unique design features a circular beam pattern with identical azimuth and elevation widths, effectively eliminating side lobes to ensure superior noise rejection and efficient spectrum usage. Built with a robust aluminum body and high-quality materials, it is engineered to withstand challenging environmental conditions while maintaining consistent performance.

Advantages

This antenna offers significant improvements over traditional sector antennas by focusing energy into a single, precise beam without side lobes, which minimizes interference and allows for higher network density. The frequency-independent radiation pattern ensures stable gain across the entire operating bandwidth, providing reliable connectivity even in complex RF environments. Its compact design significantly reduces the physical footprint on towers, helping to lower rental costs and enabling installations in locations where larger antennas are not feasible. Furthermore, the use of N-type female connectors ensures broad compatibility with a wide range of radio platforms, making it a versatile choice for scalable wireless infrastructure.

Suitable for

  • High-density wireless network deployments
  • Professional point-to-multipoint communication links
  • Environments requiring high noise rejection and co-location efficiency
  • Installations where tower space is limited

This antenna may not be suitable for long-range point-to-point backhaul links where extremely high-gain parabolic dish antennas are required to bridge vast distances. Additionally, it is not intended for indoor use or applications outside the specified 5.18–6.4 GHz frequency range.

Key specifications

  • Frequency band: 5.18 - 6.4 GHz
  • Antenna gain: 11.5 dBi
  • Connector type: N-type female
  • Impedance: 50 Ω
  • Survival wind speed: 160 km/h
  • Construction: Aluminum body with UV-resistant components
  • Dimensions: 312 x 162 x 152 mm

How to use

The antenna is designed for pole mounting and should be installed by a qualified technician to ensure proper alignment and signal coverage. Connect the antenna to your compatible radio unit using high-quality coaxial cables attached to the N-type female ports. Ensure all connections are weather-sealed if the installation is exposed to moisture. Once mounted, orient the antenna toward the target coverage area, utilizing the symmetrical beam properties to optimize the signal path. Regular inspection of the mounting hardware and cable connections is recommended to maintain long-term performance.

What to consider before purchase

  • Verify that your radio equipment is compatible with N-type female connectors.
  • Ensure the 5.18–6.4 GHz frequency range aligns with your local regulatory requirements and existing network hardware.
  • Assess the required coverage angle for your specific deployment to ensure this model meets your sector requirements.
  • Confirm that your mounting infrastructure can support the physical dimensions and weight of the unit.

Usage recommendations

For optimal network performance, ensure the antenna is mounted securely to a stable pole and that all coaxial connections are tightened and protected against environmental elements. When planning your network, leverage the antenna's excellent isolation properties to increase sector density and improve overall throughput.

Specifications

Antenna connector type: The way in which the antenna is connected to the device e.g. coaxial.
N-type
Antenna type: Type of antenna, also known an aerial, e.g. external, internal.
Horn antenna
Frequency band: A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.
5.18 - 6.4
Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.
11.5 dBi
All features

Logistics data

Products per master (outer) case:
10 pc(s)
Master (outer) case gross weight:
27400 g
Master (outer) case height:
335 mm
Master (outer) case length:
510 mm
Master (outer) case width:
940 mm

Packaging content

Quantity per pack:
1 pc(s)

Packaging data

Package weight: Weight of the packaged product.
2600 g
Package height: The distance from the top to the bottom of the packaging.
183 mm
Package depth: The distance from the front to the back of the packaging.
239 mm
Package width: The distance from one side of the packaging to the other.
305 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1.8 kg
Height: The measurement of the product from head to foot or from base to top.
152 mm
Depth: The distance from the front to the back of something.
162 mm
Width: The measurement or extent of something from side to side.
312 mm

Operational conditions

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-30 - 55

Features

Mounting: What size the mounting head of the product is, to couple it with a camera.
Pole
Purpose: What the product is used for.
Outdoor
Front to back ratio:
30 dB
Downtilt:
25 °
Mounting pipe:
30 - 90
Wind load:
22
Survival wind speed:
160 km/h
Ultraviolet (UV) resistant:
Yes
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP55
Housing material: What the casing of the product is made of.
Polypropylene (PP), Zinc, Stainless steel, Aluminium
Product colour: The colour e.g. red, blue, green, black, white.
White, Red
Voltage Standing Wave Ratio (VSWR):
1.6/1.9
Polarization:
Dual polarization
Antenna connector type: The way in which the antenna is connected to the device e.g. coaxial.
N-type
Connector gender: To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male.
Female
Antenna type: Type of antenna, also known an aerial, e.g. external, internal.
Horn antenna

Performance

Horizontal beam width:
70 °
Vertical beam width:
70 °
Impedance: The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance.
50 Ω
Frequency band: A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.
5.18 - 6.4
Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.
11.5 dBi

Description

Machine translation. Load original

Similar products

{{product.title}}
Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}
Stock data
Warehouse Stock Delivery to the store Store Price
WH323 7 15.09.2026 Best delivery
40.99 € Best price
WH355 9 21.09.2026
51.99 €
40.99 €
Stock: 7
Delivery Date: 15.09.2026 Best delivery
Warehouse: WH323
51.99 €
Stock: 9
Delivery Date: 21.09.2026
Warehouse: WH355

Customer reviews

Customer questions

FAQ

How much does the RF Elements HG3-CC-S70 Horn Antenna cost, and is it available for purchase?

The price is 40.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 16 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 15.09.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All rf elements products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized rf elements service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: antenna connector type, antenna type, frequency band, antenna gain level (max), compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for RF Elements HG3-CC-S70 Horn Antenna?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
